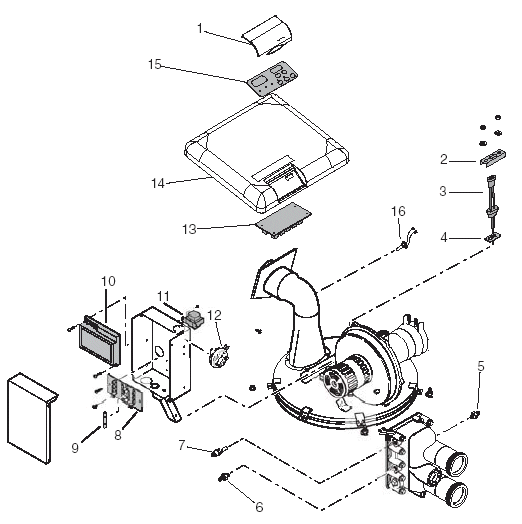

No.
|
Manf #
|
H2O # |
Description
|
|
1 |
42002-0035Z |
-------- |
Heater Display
Cover |
|
2 |
420010030S |
-------- |
Igniter Bracket |
|
3 |
77707-0054 |
9875030 |
Igniter + Igniter
Gasket -
Includes Igniter and No. 4 (
Igniter Gasket ) |
|
4 |
42001-0066S |
-------- |
Igniter Gasket |
|
5 |
42002-0025S |
9875006 |
Automatic Gas
Shutoff Switch ( AGS ) |
|
6 |
42001-0063S |
9875008 |
High Limit Switch |
|
7 |
42001-0053S |
9875015 |
Thermistor
|
|
8 |
42001-0056S |
-------- |
Terminal Board
|
|
9 |
32850-0099 |
7461602 |
Fireman's Switch
Fuse - ( 1.25 Amp, 1-1/4" Long ) |
|
10 |
42001-0052S |
9875010 |
Ignition Control
Module |
|
11 |
42001-0107S |
9875012 |
Transformer, 115 /
230V |
|
12 |
42001-0061S |
9875019 |
Air Flow Switch
|
|
13 |
42002-0007S |
9875020 |
Control Board Kit
- ( NA and LP models
) |
|
14 |
42002-0034Z |
-------- |
Heater Top |
|
15 |
472610Z |
9875042 |
Membrane Pad ( NA,
LP Series ) |
|
16 |
42002-0024S |
9875004 |
Stack Flue Sensor
- ( Note, Stack Flue Sensors have two wires
coming from inside the sensor connected to terminal connectors ) |
|
|
|
|
|
Not Shown |
|
| - |
42001-0104S |
-------- |
Heater Wiring
Harness - 115 / 230V |
| - |
42001-0105S |
-------- |
120 / 240 Volt
Conversion Plug Kit |
last updated - Sept, 2011
|
