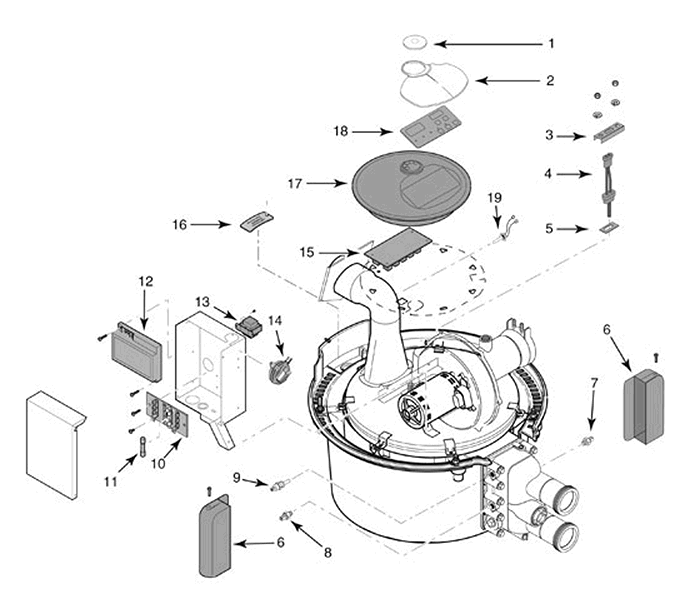

No.
|
Manf #
|
H2O # |
Description
|
|
1 |
77707-0009 |
-------- |
Display Cover
Retainer Cap Kit, Cap and CPSC Warning Label |
|
2 |
420010008S |
-------- |
Heater Display
Cover |
|
3 |
420010030S |
-------- |
Igniter Bracket |
|
4 |
77707-0054 |
9875030 |
Igniter + Igniter
Gasket -
Includes Igniter and No. 5 (
Igniter Gasket ) |
|
5 |
42001-0066S |
-------- |
Igniter Gasket |
|
6 |
42001-0007S |
-------- |
Manifold Switch
Cover |
|
7 |
42002-0025S |
9875006 |
Automatic Gas
Shutoff Switch ( AGS ) |
|
8 |
42001-0063S |
9875008 |
High Limit Switch |
|
9 |
42001-0053S |
9875015 |
Thermistor
|
|
10 |
42001-0056S |
-------- |
Terminal Board
|
|
11 |
32850-0099 |
7461602 |
Fireman's Switch
Fuse - ( 1.25 Amp, 1-1/4" Long ) |
|
12 |
42001-0052S |
9875010 |
Ignition Control
Module |
|
13 |
42001-0107S |
9875012 |
Transformer, 115 /
230V |
|
13 |
42001-0057S |
-------- |
Transformer, 120 /
240V, Dual and Single Adapter |
|
14 |
42001-0061S |
9875019 |
Air Flow Switch
|
|
15 |
42001-0096S |
9875020 |
Control Board Kit
- ( all models ) -
same as 42002-0007S |
|
15 |
42002-0007S |
9875020 |
Control Board Kit
- ( all models ) -
same as 42001-0096S |
|
16 |
77707-0022 |
-------- |
Junction Box Cover
Kit |
|
18 |
42002-0029Z |
9875044 |
Switch Membrane
Replacement |
|
19 |
42002-0024S |
9875004 |
Stack Flue Sensor
- ( shown at No. 19 ) - ( used on current models )
- ( Note, Stack Flue Sensors have two wires coming from inside
the sensor connected to terminal connectors ) |
|
19 |
42002-0009 |
9874998 |
Stack Flue Switch
- ( NOT shown at No. 19 )
- ( used on some early models ) - ( Note, Stack Flue Switches
have two terminals right on switch ) |
|
|
|
|
|
Not Shown |
|
| - |
42001-0104S |
-------- |
Heater Wiring
Harness - 115 / 230V |
| - |
42001-0105S |
-------- |
120 / 240 Volt
Plug Kit |
| - |
77707-0004 |
-------- |
Control Board
Enclosure / Membrane Panel Kit, HD Series -
Includes No. 17 and No. 18
|
| - |
77707-0013 |
-------- |
Control Board
Enclosure / Membrane Panel Kit, NA, LP Series -
Includes No. 17 and No. 18
|
