Max-E-Pro by Sta-Rite / Pentair

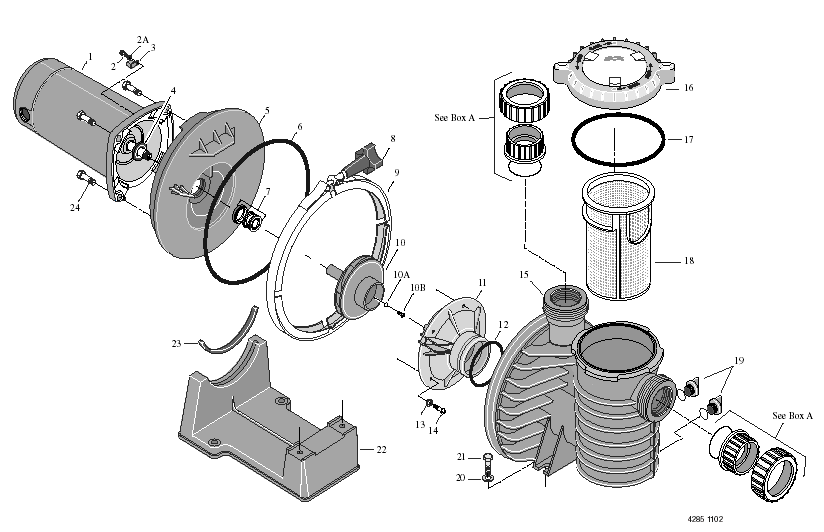

Max-E-Pro
P6E6 & P6RA6 Models
Single & Dual Speed Models

Not all models manufactured
are included in this breakdown


Max-E-Pro pool / spa pumps




Switch View To Wide Screen


  H2Oco.com


No.
Manf #
H2O #
Description

1

CALL

CALL

Motors are not listed in this breakdown

2

U30-692SS

--------

#10-32x1/2” Screw 1

2A

U43-22SS

--------

Lock Washer

3
U17-568
9871674

Bonding Lug

4
17351-0009
9871578

Water Slinger

5

C203-194P

9871442

Seal Plate Kit -  Includes No. 6 ( o-ring ) and  No. 7 ( shaft seal )

6

U9-228A

9871066

O-Ring

7

37400-0028S

9871654

Shaft Seal

8

WC36-22

9874902

Clamp Knob

9

C119-37S

9871290

Clamp - ( was # C19-37A )

10

----------->

----------->

10A

35505-1426

9871464

Impeller Screw O-Ring

10B

37337-6080

9871462

Impeller Screw - used on all models requiring impeller screw except P6RA6YF-206L

10B

37337-6081

--------

Impeller Screw - only used on model P6RA6YF-206L

11

----------->

----------->

12

U9-374

9871866

Diffuser O-Ring

13

U43-21SS

9871802

# 8 Lock Washer - 5 Required

14 U30-922SS 9871778

Screw ( w/ C1-271P Diffuser ) - 5 Required

14 U30-542SS 9871770

Screw ( w/ C1-271P1 Diffuser ) - 5 Required

15 17307-0110S 9871469

Tank Body Assembly - Includes No.15 ( trap body ),  No.18 ( basket ),
              No.19 ( drain plug & o-ring ) and No.16 ( trap cover assembly )

16 17307-0111S 9871472

Trap Cover Assembly - Includes Trap Cover, Trap Ring and No.17 ( trap cover o-ring )

17 35505-1440 9871848

Trap Cover O-Ring

18 C8-58P 9871610

Basket - Non-O.E.M # 27180-215-000 from CMP

19 U178-920P 9871682

1/4” NPT Drain Plug - ( includes O-Ring )

19 U9-359 9094189

Replacement Drain Plug O-Ring Only - 2 Required per pump - ( does not include Plug )

20 U43-41SS --------

Base Washer - 2 Required

21 U30-918SS --------

Base Screw - 2 Required

22 C4-78P --------

Base - Includes No.23 ( motor pad )

22 C104-79P --------

Base ( 3HP Only ) - Includes No.23 ( motor pad )

23 C35-43 9871506

Motor Pad

24 U30-74SS see counter

3/8-16 x 1” Hex Hd. Bolt - 4 Required

24 U30-99SS --------

3/8-16 x 1” Hex Hd. Capscrew Socket Head - ( 3HP Only ) - 4 Required

Box A
Pkg 188  - 2" Slip Half Union Kit
Box A Includes 2 each of:
U11-200P Union Collar
U9-362 O-Ring ( H2O# 9874748 )
U11-196P 2" Slip adapter
