 Flo Master "XP2" Side Discharge Pumps - Aqua-flo



Link to Aqua-Flo Website
by Gecko

Aqua-Flo FloMaster "XP2" pump

All Single Speed Pumps have been discontinued by the manufacturer. Use
dual speeds models as replacement.


Aqua-Flo Flo-Master "XP2e" pumps. Offset, "Side" discharge design, 2 inch inlet and outlet with quick release compression unions. The wet end can be rotated 90 degrees left or right and unions are included.


2 Speed - Flo-Master "XP2e" Pumps

H2O # Manf. # ?? OP.HP ?? HP Voltage Description
0827145 06120500-2040 2 3 230 v

2 HP, 2 speed, 230 v

0827155 06125000-1040 2-1/2 4 230 v

2-1/2 HP, 2 speed, 230 v

0827165 06130000-1040 3 4 230 v

3 HP, 2 speed, 230 v

?? 'OP.HP' is the true horsepower - 'HP' is the up-rated horsepower or 'SPL' known to some people. ??

For replacement parts and complete wet ends, goto page A-23

View Parts Breakdown
for XP2  models starting in 1999

View Parts Breakdown
for XP  models prior to 1999

View Parts Breakdown
for XP2e  NEW models





Specifications: Flo-Master "XP2e" 2 Speed Pump
 H2O # Manf. # Speeds  OP.HP HP Voltage  Amps Length Pump Curve

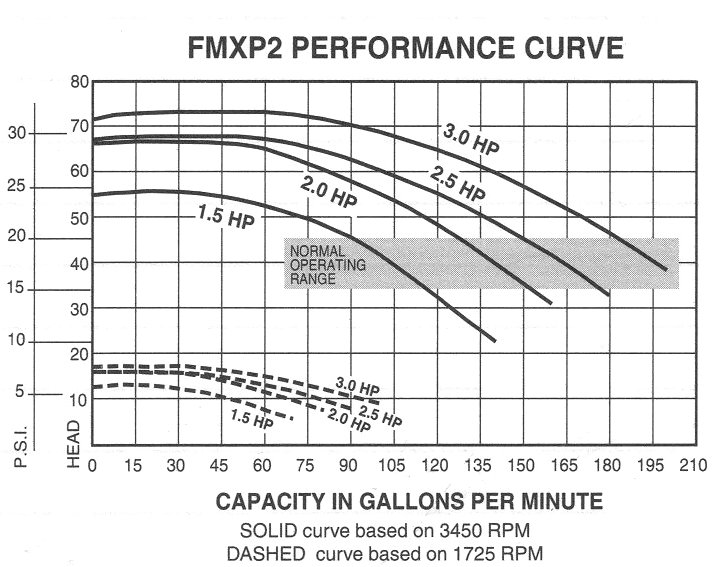

Flow Chart for both single and dual speed pumps
Click to Enlarge
0827145 06120500-2040 2 2 3 230 v ? 16-3/8"
0827155 06125000-1040 2 2-1/2 4 230 v ? 17-3/8"
0827165 06130000-1040 2 3 4 230 v 12.0/4.4 17-3/8"
