Challenger High Flow Pumps
- Pentair |
|
Data Sheet
Owner's
Manual
View Parts Breakdown
|
|
The Challenger single speed High Flow pump is designed to provide years of
trouble-free performance in installations that don’t require high
pressure, such as residential pools without a spa.
|
|
1 Speed, Up-Rated,
Challenger High Flow |
|
H2O # |
Manf. # |
Model. # |
HP |
Voltage |
Description |
|
0850330 |
343232 |
CFII-NI-3/4A |
3/4 |
115 / 230 v |
3/4 HP, 1 speed, Up-Rated ** |
|
0850333 |
343233 |
CFII-NI-1A |
1 |
115 / 230 v |
1 HP, 1 speed, Up-Rated ** |
|
0850336 |
343234 |
CFII-NI-1-1/2A |
1.5 |
115 / 230 v |
1.5
HP, 1 speed, Up-Rated ** |
|
0850339 |
343240 |
CFII-NI-2A |
2 |
230 v |
2
HP, 1 speed, Up-Rated ** |
|
0850342 |
343229 |
CFII-NI-2-1/2A |
2.5 |
230 v |
2.5
HP, 1 speed, Up-Rated ** |
All pumps above have
2" Threaded Suction and Discharge
** Special Order Item |
|
1 Speed, 5HP, Full-Rated, Challenger High Flow |
|
H2O # |
Manf. # |
Model # |
HP |
Voltage |
Description |
|
0850345 |
345210 |
CFII-NI-5FE |
5 |
208-230 v |
5
HP, 1 speed, Full-Rated |
|
5 HP pump comes with Large
Strainer and 3" Threaded Suction and 2" Discharge |
|
|
Specifications:
1
Speed, Up-Rated,
Challenger High Flow |
|
H2O # |
Manf. # |
Model # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length |

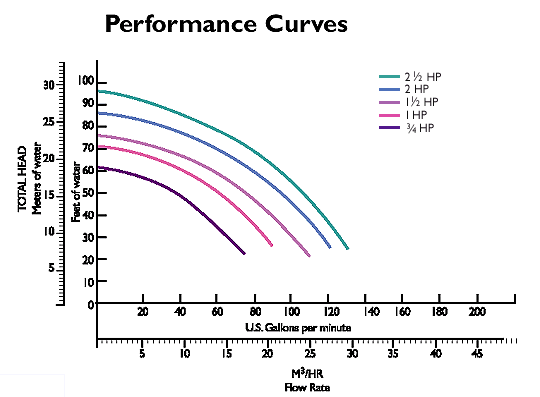

Pump Curve
Click to Enlarge |
|
0850330 |
343232 |
CFII-NI-3/4A |
1 |
3/4 |
1.27 |
115 / 230 v |
10.8 / 5.4 |
23" |
|
0850333 |
343233 |
CFII-NI-1A |
1 |
1 |
1.25 |
115 / 230 v |
14.2 / 7.1 |
23" |
|
0850336 |
343234 |
CFII-NI-1-1/2A |
1 |
1.5 |
1.10 |
115 / 230 v |
16.0 / 8.0 |
23" |
|
0850339 |
343240 |
CFII-NI-2A |
1 |
2 |
1.10 |
230 v |
11.2 |
23" |
|
0850342 |
343229 |
CFII-NI-2-1/2A |
1 |
2.5 |
1.04 |
230 v |
11.5 |
23" |
|
All pumps above have
2" Threaded Suction and Discharge |
Specifications:
1 Speed, 5HP, Full-Rated,
Challenger High Flow |
|
H2O # |
Manf. # |
Model # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length |

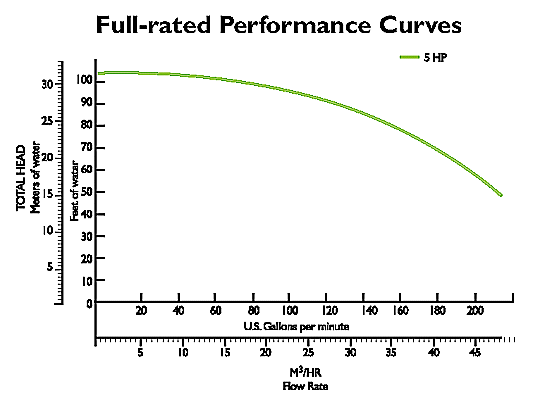

Pump Curve
Click to Enlarge |
|
0850345 |
345210 |
CFII-NI-5FE |
1 |
5 |
1.00 |
208-230 v |
21.0 / 19.4 |
30-7/8" |
5 HP pump comes with Large Strainer and 3" Threaded Suction and 2"
Discharge |
|
|
