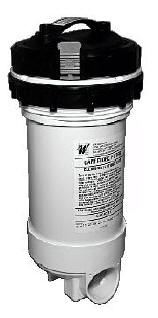

Top Load Cartridge Filter -
Waterway |
|
View Parts Breakdown |
|
Designed for easy installation in a spa or above ground pool flange or
in a in-deck installation.
|
|
Waterway Cartridge Filter |
|
H2O # |
Manf. # |
Description |
|
1490201 |
500-5050 |
50 sq ft top load filter,
1-1/2" Slip with brominator feeder and bypass |
|
Specifications:
|
|
Manf. # |
Sq. Ft. |
Width |
Height |
GPM* |
8 hr Turnover* |
|
500-5050 |
50 |
71/2" |
12-1/2" |
50 |
24,000 |
|
*
based on maximum residential
flow rate of 1 GPM |
|
Replacement Cartridge - Unicel ( One
Required )
|
|
H2O # |
Manf. # |
Description |
|
1846307 |
C-4950 |
50
sq ft cartridge - ( replaces OEM # 817-5000 ) |
|
|
In Line Cartridge Filter -
Waterway |
|
|
|
Commonly used to replace inline filters found on older Cal Spa portable
spas. Filter is unionized. For new installations, order Aquaflo 1-1/2"
style union half.
|
|
Waterway In Line Cartridge Filter |
|
H2O # |
Manf. # |
Description |
|
1490206 |
500-2570 |
25 sq ft in line
filter, 1-1/2" Male Union half with bypass
*** |
|
1490208 |
500-5070 |
50 sq ft in line
filter, 1-1/2" Male Union half with bypass |
|
*** Special Order Item |
|
Specifications:
|
|
Manf. # |
Sq. Ft. |
Width |
Height |
GPM* |
8 hr Turnover* |
|
500-2570 |
25 |
5-3/4" |
17-7/8" |
25 |
12,000 |
|
500-5070 |
50 |
5-3/4" |
17-7/8" |
50 |
24,000 |
|
*
based on maximum residential
flow rate of 1 GPM |
|
Replacement Cartridge - Unicel ( One Required )
|
|
H2O # |
Manf. # |
Description |
|
------------ |
C-4326 |
25 sq ft cartridge - (
replaces OEM # 817-2500 ) *** |
|
1846307 |
C-4950 |
50 sq ft cartridge - (
replaces OEM # 817-5000 ) |
|
*** Special Order Item |
|
|
