Badu®Stream II - Jet System |
|
Brochure
Parts List
Technical Data
Owner's Manual
All Badu®
SwimJet Systems are
VGB compliant and carry
UL, MET and ASME approvals.
The Badu®Stream II system is
normally incorporated into the design,
but it can be added to any pool at a later date.
For Speck Pumps Only
visit catalog page A-19 |
|

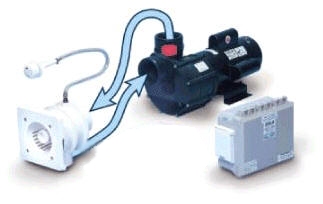

The Badu®Stream II Jet System offers many different combinations.
Featured here are two of their most popular combinations, ( One Pump
/ Two Jets ) and ( Two Pumps / Three Jets ).
All Badu®Stream II combinations include control box with air button
and air tubing.
|
 |
The Jets has no
protruding parts ensuring pool user’s safety.
Square anti-vortex cover ( 8 1/4" X 8 1/4" ) provides
undetectable
4" pump suction. Adjustable water flow jet nozzle.
Air regulator controls amount of air bubbles in water flow.
( Package A comes with one regulator )
( Package D comes with three regulators ) |
 |
Speck 4 HP self-priming,
plastic pump, single phase with thermal
overload ( no motor starter required ).
Model 21-80/33, 4 HP, 208-230 Volts, 19.4A (each),
700 GPM @ 15 PSI
Pump requires 40 amp breaker to avoid nuisance tripping.
Minimum 4" plumbing required. |
 |
Control box with GFCI.
Includes One Air Button and 50 feet of Air Tubing. |
|
|
Badu®Stream II Jet Systems |
|
H2O # |
Manf. # |
Description |
|
4070108 |
Old#
2308000042
New#
SS484-2400M-1SW |
( Package A )
Two Jets complete
with One Pump and Control Box with GFCI.
Includes One Air Regulator *** |
|
4070111 |
Old#
2308000046
New#
SS484-3400M-1SW |
( Package D )
Three Jets complete
with Two Pumps and Control Box with GFCI.
Includes Three Air Regulator and also includes
two 4" check valves. |
***
Special Order
Other packages, accessories
and options are also available. |
|
|
Badu®Jet -
Super-Sport Jet System |
|
Brochure
Parts List
Technical Data
Owner's Manual
All Badu®
SwimJet Systems are
VGB compliant and carry
UL, MET and ASME approvals.
The Badu®Jet is normally
incorporated
into the original pool design, but it can
be added to any pool at a later date.
For Speck Pumps Only
visit catalog page A-19 |
The full featured Badu®Jet
super-sport offers suction and discharge in a unique, patented,
one-piece dual nozzle housing. Volume control and on/off button are
conveniently located on the face of the jet housing. Package comes
with One Pump
/ One Dual Nozzle Jet and includes control box with air button
and air tubing.
|
 |
Flush mounted, plastic
housing, 16” diameter.
Rectangular anti-entrapment cover provides undetectable
suction which is ( 20” x 17” ).
Adjustable recessed jet nozzles.
Volume control knob adjusts flow of water. |
|
|
Speck 4 HP self-priming,
plastic pump, single phase with thermal
overload ( no motor starter required ).
Model 21-80/33, 4 HP, 208-230 Volts, 19.4A (each),
700 GPM @ 15 PSI
Pump requires 40 amp breaker to avoid nuisance tripping.
Minimum 4" plumbing required. |
|
|
Control box with GFCI.
Includes One Air Button and 50 feet of Air Tubing. |
|
|
Badu®Jet super-sport |
|
H2O # |
Manf. # |
Description |
|
4070105 |
Old#
2300000037
New#
JS414-2400M-1SW |
One Dual Nozzle Jet complete
with
One Pump and Control Box with GFCI.
Includes One Air Regulator *** |
***
Special Order
Other accessories
and options are also available. |
|
|
