H2O# 9892258

Jandy #R0016400
Includes 1 gasket
Used On The Following Models:
Hi-E  ( Mfg. 1991 - 1996 ) EPH
Hi-E2 ( Mfg. from 1997 )


H2O# 9892257

Jandy #R0317200
Includes 2 gaskets and 1 metal bracket
Used On The Following Models:
Laars Lite LLD ( Mfg. 1997-2000 )

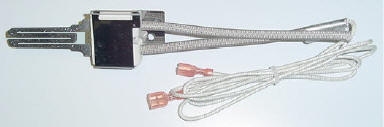

H2O# 9892733

Jandy #R0337000
Includes 1 gasket and 3 mounting screws
Used On The Following Models:
LX™ / LT™ ( Mfg. 1999 - 2003 )




H2O# 9892256

Jandy # R0449800
( previous part number was #R0367100 )

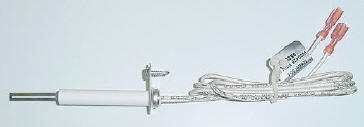

Igniter 4"   This now comes as a Retrofit Kit instead of just an igniter.
Used On The Following Models:
Lite2™ LJ ( Mfg. 2003 -  2009 )

Kit Includes:
New  Burner /  Igniter Assembly,
Hot Surface Igniter,
 Igniter Box Cover Bracket Assembly and screws.

On earlier models of the Lite2 LJ heater, the flame sensor was installed in the igniter box along side of the igniter. Newer models of the Lite2 LJ heater have the  flame sensor mounted to the first burner on the right. Since this kit is designed to eliminate the igniter box, the new flame sensor replacement kit ( R0331300 ) must be ordered and installed along with this retrofit kit on those earlier models.
The additional kit ( R0331300 ) is currently a special order item.
