Model 320 by Pentair
( Rainbow Lifegard by Pentair )

In-Line Automatic Feeder
Unit Order Number R171096

#320 In-line Pool bromine / chlorine feeder, 17-3/4"  tall,
holds 11 - 3 inch or 98 - 1 inch tablets, up to 27,000 gallons
bottom feed and 18,000 to 70,000 gallons top feed



 H2Oco.com

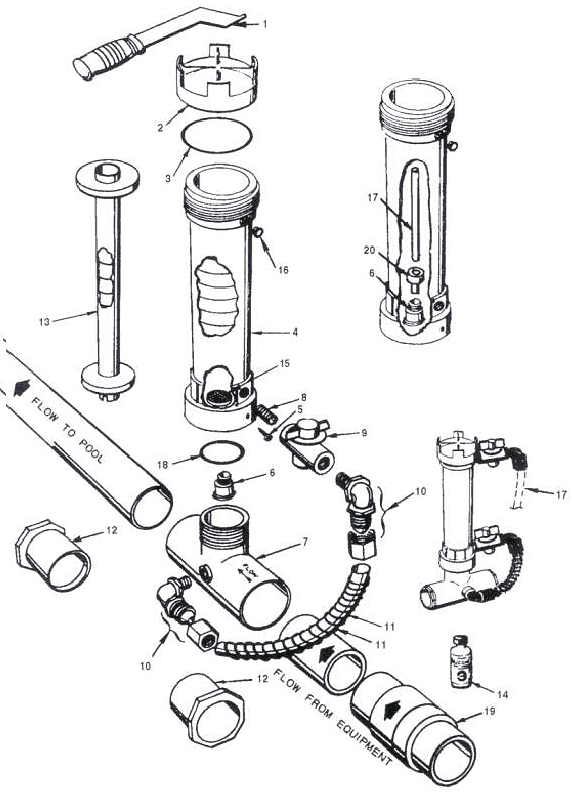

No.
Manf #

H2O #

Qty
Description

1

R172052

9794221

optional

Cap wrench

2

R172008W

9794102 1

3 in. Threaded cap white

3

R172009

9095223 1

O-ring, cap - by Aladdin
Part Number O-283

4

R172321
-------- 1

# 320 Body only (new)

5

R01052

-------- 1

Lock screw

6

R172248

9794321 1

Check valve

7

R172317

-------- 1

Diverter tee 1-1/2 NPT x 2 in. slip

8

R172256

-------- 1

1/2 in. x Short MPT nipple

9

R172086

9794294 1

1/2 in. Control valve

10

R172272

9794454 2

1/2 in. NPT x tube 90° ELL w/nut

10

R172274

9794459 reference

Compression nut only
(comes with R172272 but can be purchased separately)

11
R172091
9794316 1

5/8 in. o.d. Short feeder tube

11

R171097

-------- optional

Tube support spring

12
R172210
-------- 2

*( not used with 2 inch PVC )
2 in. x 1-1/2 in. S x S bushing
*
for 1-1/2 inch PVC only

13

R172037

3839151 optional

Spa chamber

14

R172036

-------- 1

Silicone lubricant

15

R172255

-------- 1

Screen

16
R172134
-------- 1

1/2 in. MPT PVC plug

17
R172253
-------- 1

5/8 in. o.d. 18 in. tube
( for optional top feed )

18

R172319

9794518 1

Bottom o-ring

19

R172288

4831317 optional

1-1/2 in. Check Valve
Corrosion-resistant

20

R172048B

-------- 1

Standpipe adapter



last update -  July, 2012
