FlowMaster "XP2" by Aqua-Flo / Gecko


FMXP2  series pumps where manufactured Starting in 1999
 - now  -  Discontinued

Not all parts are interchangeable with other versions.

The FMXP2 series pumps are now replaced with the FMXP2e models.
See 'FlowMaster FMXP' for "XP" pumps manufactured ( Prior to 1999 )




   H2Oco.com

sssss

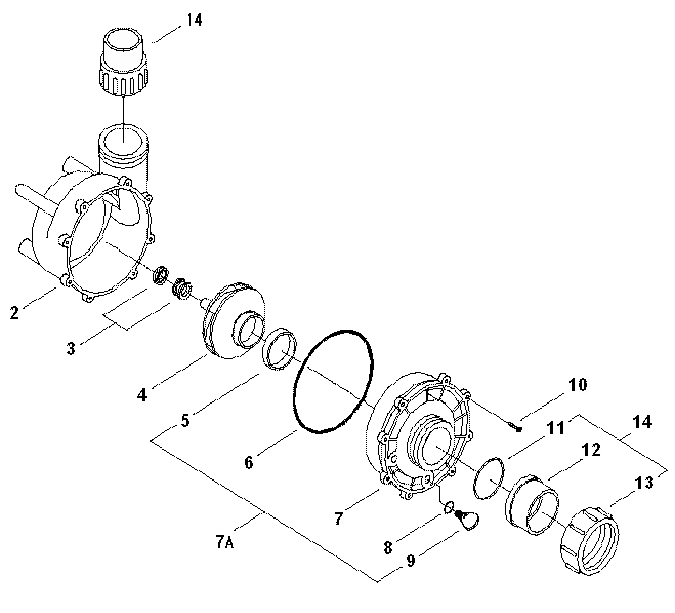

No.
Manf #
H2O #
Description

--------

--------

--------

Replacement Thru Bolt Motor Not Shown

2

92770705

9132388

Volute, XP2, 48 Frame

2

92770715

 --------

Volute, XP2, 56 Frame, 6.1" Dia.

2

92770725

 --------

Volute, XP2, 56 Frame, 6.3" Dia.

3

92500150

 # 200 Style
Seal

Pump Seal - Several choices are available - See pump seals for more info.
Choices are H2O# 9091280, 9091275 and 9091253

4

91694150

 9132273

1.5 HP Impeller, XP / XP2 Series

4

91694200

 9132278

2.0 HP Impeller, XP / XP2 Series

4

91694251

 9132289

2.5 HP Impeller, XP / XP2 Series

4

91694300

 9132290

3.0 HP Impeller, XP / XP2 Series

4

91694400

 9132292

4.0 HP Impeller, XP2 Series

5

92830070

 9132410

Wear Ring, Flanged
6
92200301
 9132323

O-ring, Volute, XP2 Series, #164 - ( old num = 92200300 )

7

91231606

 9132223

Cover, Suction,XP2 Series, 2", Std Drain
2-5/8" ID on back side to receive impeller wear ring.

7A
56910090
 --------

Replacement Kit Cover, Complete,2", XP2 Series, Std Drain

8

92200060

 9132300

O-ring, Drain Plug, #206 ***

9

92290070

 9132344

Plug, Drain 1/4"-18 NPSM, Wing ***

10

99730050

 9132432

Screw, #8-32 x 5/8" Long, ( 8 required )
11
92200210
 9095039

O-ring, #230 - also sold as complete union half - key no. 14
12
91431200
 --------

Fitting, Tail Piece, 2" - also sold as complete union half - key no. 14

13

91431150

 --------

Fitting, Union Nut, 2" - also sold as complete union half - key no. 14

14

52202000

 7433115

Fitting, Compression, Complete, 2" x 2", union half complete

*** H2O # 9871682 may also be used in place of  8 and 9. This drain plug includes the o-ring and differs in style.

We recommend that you consider replacing the entire wet end when ever
the repair goes beyond replacing just a seal or o-ring.

"XP2"  48 Frame Replacement Wet Ends - NOTE - Aqua-Flo Flo-Master "XP2" replacement wet ends have been discontinued and replaced with the updated version "XP2e". Plumbing connections, suction and discharge configuration remain the same.

--------

91041609-000

 --------

1.5 HP, Wet End, 2", XP2, Std Drain, 48F
old XP2 manf # 91041609-000

--------

91041820-000

 0830166

2.0 HP, Wet End, 2", XP2e, Std Drain, 48F
old XP2 manf #  91041610-000

--------

91041825-000

 0830169

2.5 HP, Wet End, 2", XP2, Std Drain, 48F
old XP2 manf # 91041611-100

--------

91041830-000

 0830172

3.0 HP, Wet End, 2", XP2, Std Drain, 48F
old XP2 manf # 91041612-000


"XP2"  56 Frame Replacement Wet Ends - NOTE - Aqua-Flo Flo-Master "XP2" replacement wet ends have been discontinued and replaced with the updated version "XP2e". Plumbing connections, suction and discharge configuration remain the same. Call for information on these wet ends, we currently do not stock the replacement wet ends.



last update -  January, 2013
