1

CALL

Motors are not listed in this breakdown

2

355303

Plate, seal black ( all models except 5Hp )

2

355497

Plate, seal 5F, black ( 5HP only )

Plate, mounting - 1/2F, 3/4F, 3/4A, 1A

Plate, mounting - 1F, 1-1/2F, 1-1/2A, 2A

Plate, mounting - 2F, 2-1/2A

Plate, mounting - 5F - ( 5HP )

Seal 5/8 in. mechanical ( O.E.M ) or ( in US Seal use H2O# 9091275 )

5

355043

Impeller - 1/2F, 3/4A

5

355067

Impeller - 3/4F, 1A

5

355074

Impeller - 1F, 1-1/2A

5

355086

Impeller - 1-1/2F, 2A

5

355093

Impeller - 2F, 2-1/2A

5

355068

Impeller - 5F - ( 5HP )

6

355029

Diffuser - 1/2F, 3/4F, 3/4A, 1A

6

355077

Diffuser - 1F, 1-1/2F, 1-1/2A, 2A

6

355094

Diffuser - 2F, 2-1/2A

6

355069

Diffuser - 5F - ( 5HP )

7

355320

Band clamp assembly, complete

8

355302

Housing, front, black -  Includes items 16 ( o-ring ) & 17 ( drain plug )   - 2" threaded

9

354290

Screw - ( motor to plate ) -  3/8" x 16 x 1" Hx d Cap 18-8 s/s 3/8 in., 16 hex hd., 4 required

10

355389

Screw, impeller locking

11

355305

Base, pump -  Includes item 11B ( adapter )

11B

355385

Adapter, ( allows 5 -5/8 in. dia. motors or  6-1/2 in. dia. motors )

12

355334

Screw - ( holds item 3 to item 2 ) - No.8, 32 hex wsh. hd., 3 required

13

355030

Quad Ring Diffuser - ( all models except 5Hp )

13

355331

O-Ring Diffuser - ( 5HP only )

14

355329

O-ring, front housing

15

--------

use item 22

16

192115

O-ring, drain plug - pump has total of 2

17

154699

Drain Plug 1/4 in. drain - pump has total of 2

18

135060

Clamp Bolt, This carriage bolt is a replacement part for old style clamp band assembly (item 7)

19

072173

Washer, flat 5/16 in. SS flat - for item 7 band clamp

20

174882

Knob -  ( fits clamp w/removable T-bolt only )

20

175025

Knob -  ( fits clamp w/captured T-bolt only )

21

355330

O-ring Strainer pot flange

22

354265

Screw - 5/16 x 18 x 3/4" hex wsh. hd., - 4 required - ( mounts strainer to housing )

23

154699

Drain Plug 1/4 in. drain - pump has total of 2

24

192115

O-ring, drain plug - pump has total of 2

25

355300

Strainer pot black - ( all models except 5Hp ) -  2" threaded

26

355318

Basket, plastic strainer - ( all models except 5Hp ) - We carry an alternative to the
O.E.M from Pentair ( see picture ) - Manuf# 27180-219-000 from CMP

27

350013

O-ring Lid - ( all models except 5Hp )

28

355301

Lid, strainer pot - ( all models except 5Hp )

29

552377

Reducer Bushing - 2" Threaded x 1-1/2" Threaded - ( discontinued - for reference only )

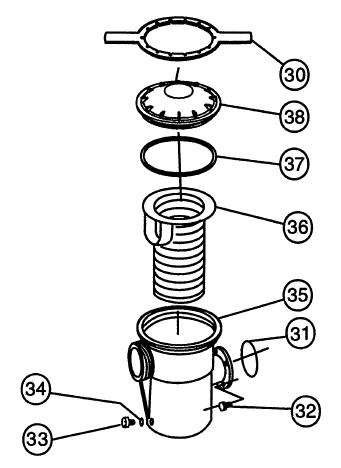

30

154527

Wrench for Lid, 8-1/2" - ( for 5HP )

31

355330

O-ring Strainer pot flange

32

354265

Screw - 5/16 x 18 x 3/4" hex wsh. hd., - 4 required - ( mounts strainer to housing to base )

33

357161

Drain Plug 1/4 in. drain - pump has total of 2 - replaces old # 154699

34

192115

O-ring, drain plug - pump has total of 2

35

355900

Strainer pot 5F - ( 5 HP ) - 3 in. suction for all large strainer pot models, black

36

355901

Basket, SS strainer 5F - ( 5 HP )

37

152509

Square ring - 8-1/2 in. ( 5 HP only ) for Strainer Pot

38

355902

Lid, strainer pot 5F, clear- ( 5 HP )

38

355914

Lid, strainer pot, 5F, black chemical resistant- ( 5 HP )
