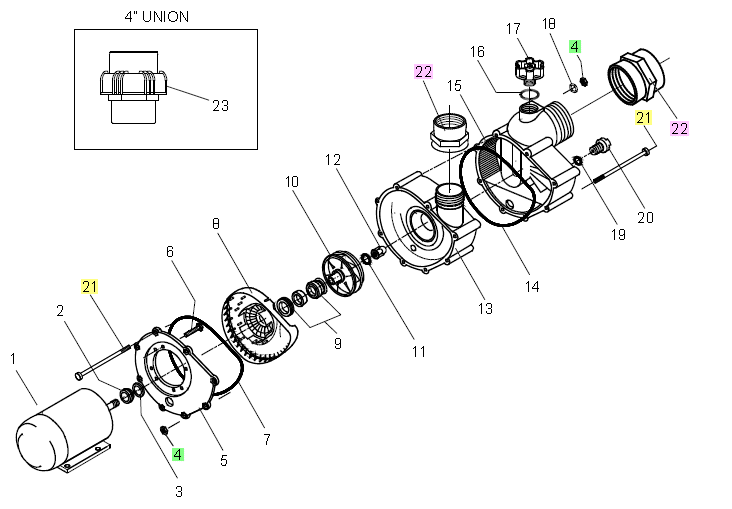

No.
|
Manf #
|
H2O # |
Description
|
|
1 |
B116
Century |
1010165 |
4HP,
Single Speed, 208-230V, 1.25 SF, Speck Threaded Shaft
Speck motor part number = 0817370201 'C' Face 56Y |
|
2 |
2923151601 |
-------- |
V-Ring 18mm |
|
3 |
2923141240 |
-------- |
Shaft Washer
14/22 IT 400 |
|
4
|
5879340600
|
-------- |
Nut - Casing
Bolt M6 SS -
( 8 required ) - nut for key # 14
Casing Bolt |
|
|
2923116010
|
-------- |
Aluminum Flange |
|
6 |
2923190120 |
-------- |
Bolt - Motor,
Hex M8 x 16mm -
( 4 required ) |
|
7 |
2923141010 |
In Go Kit
9090790 |
Gasket - Seal
Housing - ( old part # 2923141000 )
Go Kit Sub Assembly # 9094238 |
| 8 |
2923116100 |
-------- |
Seal Housing |
| 9 |
2920343310 |
In Go Kit
9090790 |
Mechanical Seal
( 20mm ) COMPLETE
Go Kit Sub Assembly # 7491100 |
| 10 |
2923223013 |
-------- |
Impeller 3.0 HP
S.F. 1.15 - 106-122 / 20 mm |
| 10 |
2923223014 |
-------- |
Impeller 4.0 HP
S.F. 1.25 - 113-122 / 20 mm |
| 10 |
2923223035 |
-------- |
Impeller 6.0 HP
S.F. 1.0 - 120-122 / 20 mm |
| 11 |
2923541229 |
In Go Kit
9090790 |
O-Ring - Shaft
16.9 x 2.75mm VITON
Go Kit Sub Assembly # 9091101 |
| 12 |
2923592200 |
-------- |
Nut - Impeller -
Plastic w/Brass Insert M12 |
| 13 |
2923210722 |
-------- |
Discharge
Housing |
| 14 |
2923241200 |
9094235 |
O-Ring - Casing
- 210 x 4mm |
| 15 |
2923210620 |
-------- |
Suction Housing |
| 16 |
2923241231 |
9792162 |
O-Ring - Filler
Plug 24 x 3.5mm |
| 17 |
2922091600 |
-------- |
Filler Plug (
3/4" ) |
| 18 |
2991400024 |
-------- |
Washer - Casing
Bolt ( 1/4" ) Top 2 Bolts Only -
( 2 required ) |
| 19 |
2923541220 |
In Go Kit
9090790 |
O-Ring - Casing
Drain Plug 12 x 2.5mm
Go Kit Sub Assembly # 9094189 |
| 20 |
2923591200 |
-------- |
Plug - Casing
Drain ( 1/4" ) - Hex Head |
|
21 |
2923291000 |
-------- |
Bolt - Casing,
Phillips M6 x 170mm SS -
( 8 required ) |
|
22 |
2500223433 |
-------- |
Adapter - Casing
( 2-3/4" x 3" NPT / 4" ) -
( 2 required ) - Threaded
Parts unique to the model 21-80/GS shipped prior
to Feb 1st, 2008 |
| 23 |
2500200900 |
-------- |
4" Union Package
- Includes Adaptor,
O-Ring 123 x 6mm, Union End, Nut |
|
10, 11, 12 |
2923800050 |
-------- |
Impeller Upgrade
- Impeller w / Nut & O-Ring
Parts unique to the model 21-80/G shipped prior to
March 2000 |
|
10, 11, 12 |
2923800020 |
-------- |
Impeller Upgrade
- Impeller w / Nut & O-Ring
Parts unique to the model 21-80/G shipped prior to
March 2000 |
|
10, 11, 12 |
2923800060 |
-------- |
Impeller Upgrade
- Impeller w / Nut & O-Ring
Parts unique to the model 21-80/G shipped prior to
March 2000 |
| 11 |
2923541220 |
-------- |
O-Ring - Shaft
12 x 2.5mm
Parts unique to the model 21-80/G shipped prior to
March 2000 |
| 12 |
2923592300 |
-------- |
Nut - Impeller
M12 SS - ( Old Style )
Parts unique to the model 21-80/G shipped prior to
March 2000 |
|
|
|
Items Not Shown |
|
----- |
2902041252 |
9091103 |
O-Ring - 123 x
6mm ( UNION ) -
( 2 required ) |
|
----- |
2902072104 |
-------- |
Union End -
114mm / 4" -
( 2 required ) |
|
----- |
2902072112 |
-------- |
Nut (
UNION ) -
( 2 required ) |
|
----- |
2923141210 |
-------- |
O-Ring - 70 x
4.5mm ( ADAPTER ) -
( 2 required ) |
|
----- |
2923172101 |
-------- |
Adapter / Union
- ( 2
required ) |
|
----- |
2902099800 |
-------- |
Spanner Unions (
Optional ) |
