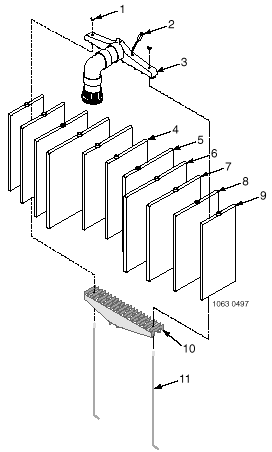

S7D75  Filter Element Assembly  Sta-rite System:3 D.E.

Description

Qty

H2O #

Sta-Rite #

Unicel #

Key No.
 Wing Nut 2 9874583 35402-0074 - 1
 Air Bleed Assembly 1 9874943 24800-0120 - 2
 Manifold 1 9874958 24800-0100 - 3

 Grid
  12-7/16" x 18"  offset port

 1 1849222 23900-1171 FG-3912 4

 Grid
 13-13/16" x 18"   offset port

 2 1849230 23900-1170 FG-3913 5

 Grid
 16-1/2" x 18"  center port

 2 1849238 23900-0033 FG-3016 6

 Grid
 15-3/16" x 18"  center port

 2 1849234 23900-1174 FG-3015 7

 Grid
 12-7/16" x 18"  center port

 2 1849218 23900-1175 FG-3012 8

 Grid
 9-11/16" x 18"  center port

 2 1849206 23900-1173 FG-3009 9
 Element Grid Support 1 9874959 23900-0350 - 10
 Rod 2 9874275 23900-0039 - 11
