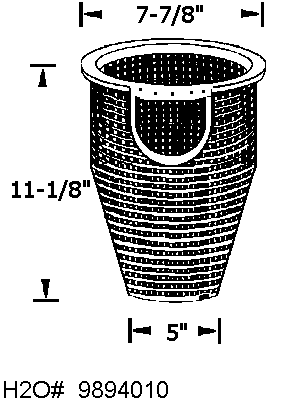

Jandy JHP

Top
7-7/8"
Height
11-1/8"
Bottom
5"

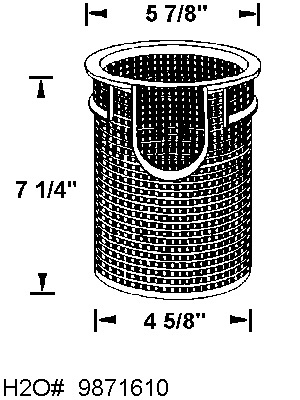

Sta-Rite Dura II / Max II

Top
5-7/8"
Height
7-1/4"
Bottom
4-5/8"

Aladdin B-207

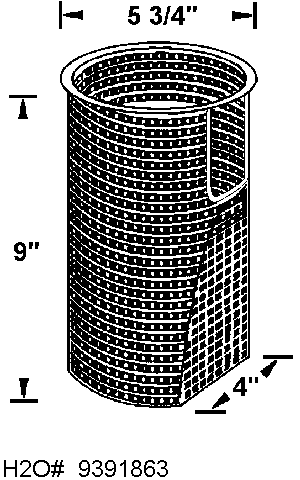

Hayward Super II

Top
5-3/4"
Height
9"
Bottom
4"

Aladdin B-13

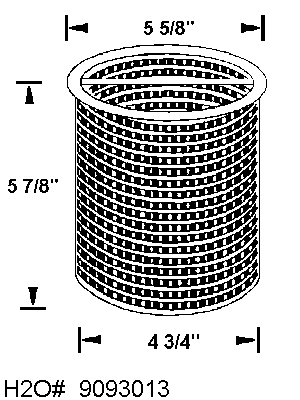

Pac Fab 700  35-2670

Top
5-5/8"
Height
5-7/8"
Bottom
4-3/4"

Aladdin B-101

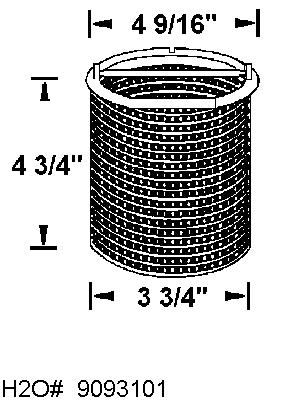

Pac Fab  Dynamo
35-4548

Top
4-9/16"
Height
4-3/4"
 Bottom
3-3/4"

Aladdin B-106

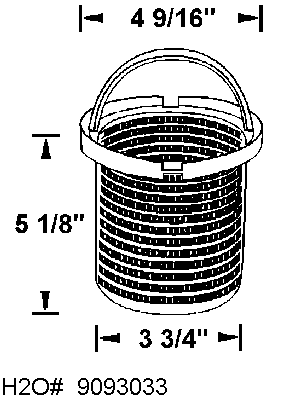

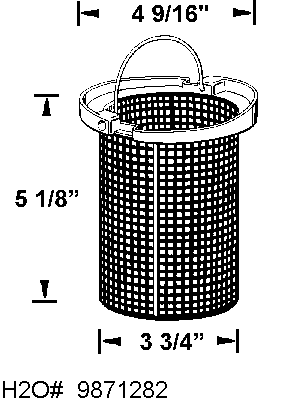

Sta-Rite 5" pump

Top
4-9/16"
Height
5-1/8"
Bottom
3-3/4"

Aladdin B-34

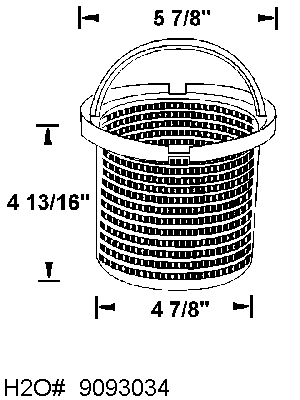

Premier 6" basket
Sta-rite 6" basket

Top
5-7/8"
Height
4-13/16"
Bottom
4-7/8"

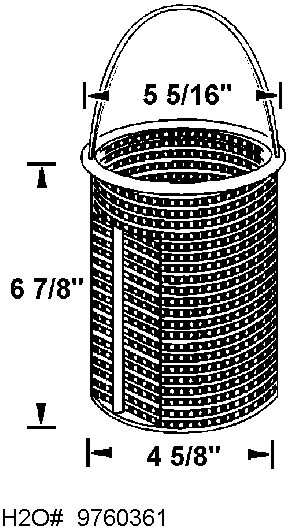

PacFab Challenger

 *Note * We are currently stocking the alternative to the O.E.M basket, from Pentair.



Alternative to O.E.M is very different in design. We have had positive reviews from those whom have switched to this new style. Not manufactured by Pentair.

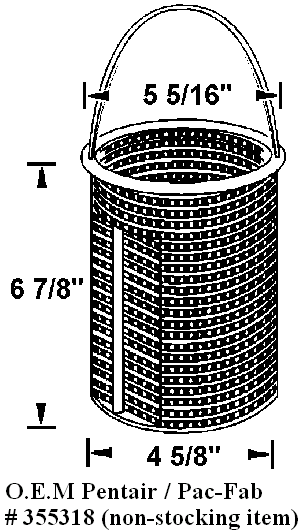

O.E.M
Top
5-5/16"
Height
6-7/8"
Bottom
4-5/8"

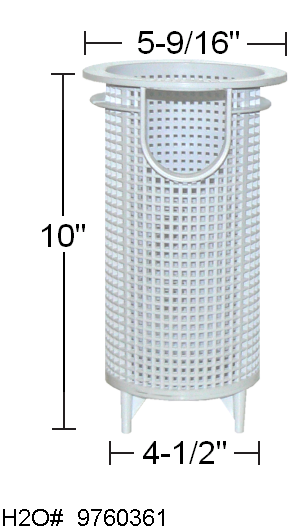

CMP
Top
5-9/16"
Height
10"
Bottom
4-1\2"

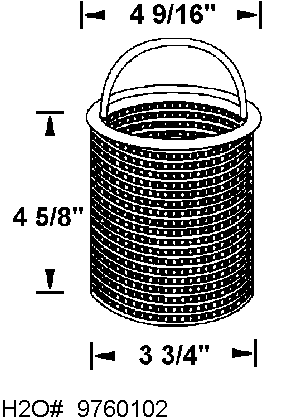

PacFab Hydropump 590

Top
4-9/16"
Height
4-5/8"
Bottom
3-3/4"

Aladdin B-199

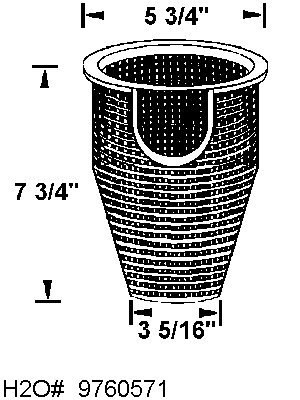

Aqua-flo Dominator
Pentair Whisperflo
Purex Aquatron

9093200



Pentair
070387

CMP
27180-199-000

Top
5-3/4"
Height
7-3/4"
Bottom
3-5/16"

Aladdin B-196

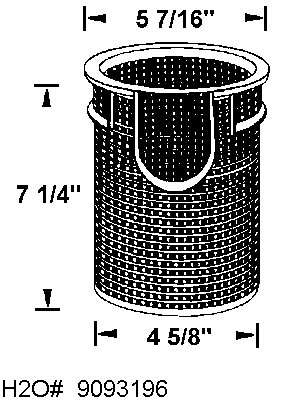

Swimquip XL-VII

Top
5-7/16"
Height
7-1/4"
Bottom
4-5/8"

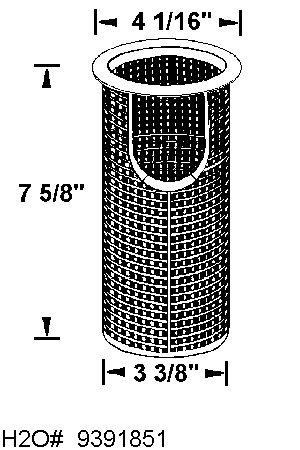

Hayward MaxFlo

Top
4-1/16"
Height
7-5/8"
Bottom
3-3/8"

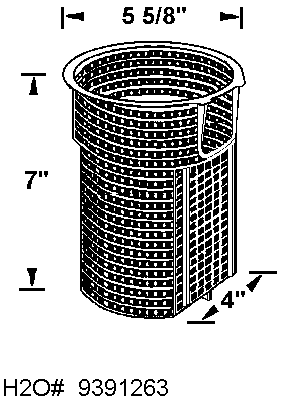

Hayward 1500 series (large)

Top
5-5/8"
Height
7"
Bottom
4"

Aladdin B-36

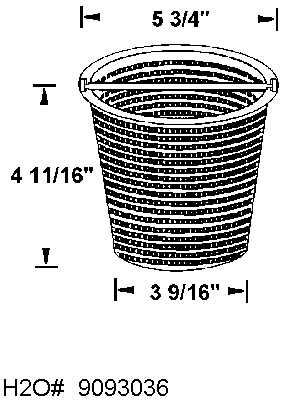

AquaFlo  6" basket
Purex  Eastside 6" basket

Top
5-3/4"
Height
4-11/16"
Bottom
3-9/16"

Aladdin B-167

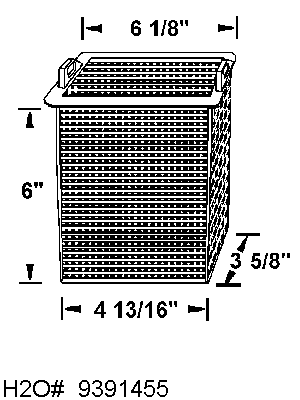

Hayward Super Pump

Top
6-1/8"
Height
6"
Bottom
4-13/16"
Depth
3-5/8"

Aladdin B-33
Premier 5" basket
Sta-rite 5" basket

Top
4-9/16"
Height
5-1/8"
Bottom
3-3/4"

Aladdin B-35

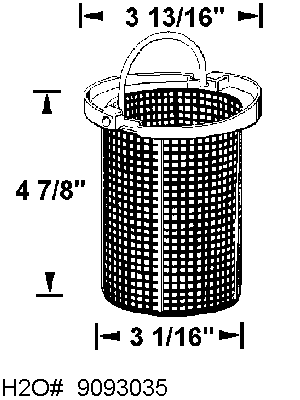

Premier 4" basket
Sta-rite 4" basket

Top
3-13/16"
Height
4-7/8"
Bottom
3-1/16"

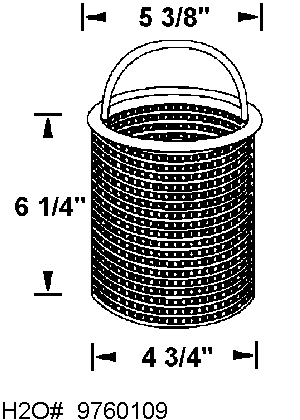

PacFab Hydropump 700

Top
5-3/8"
 Height
6-1/4"
Bottom
4-3/4"

Aladdin B-167

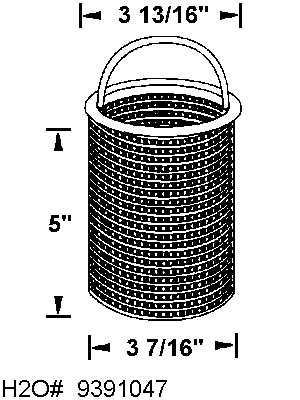

Hayward Power Flo

Top
3-13/16"
Height
5"
Bottom
3-7/16"
