 WhisperFlo Pumps - Full Rated - Pentair

Pentair Whisperflo Pump

Brochure

 Owner's Manual
View Parts Breakdown


Don't
Forget the
Union Adapters:



Note the o-ring on the 2" threaded
part of the union. The other end of the union adapter is 2" slip. Visit union page here.




40% glass-filled thermoplastic with the Cam & Ramp "see thru" lid design.
Self priming, high flow with patented Funnel-Flo™ diffusers. 2 inch threaded suction and discharge ports.
Standard and energy-efficient, full rate square flange motors.


1 Speed,  Full Rated,  WhisperFlo

H2O # Manf. # Model. # HP Voltage Description
0850301 011511 WFE-2 1/2 208-230 / 115 v

1/2 HP, 1 speed, Full Rated

0850304 011512 WFE-3 3/4 208-230 / 115 v

3/4 HP, 1 speed, Full Rated

0850307 011513 WFE-4 1 208-230 / 115 v

1 HP, 1 speed, Full Rated

0850310 011514 WFE-6 1-1/2 208-230 v

1-1/2 HP, 1 speed, Full Rated

0850313 011515 WFE-8 2 208-230 v

2 HP, 1 speed, Full Rated

0850316 011516 WFE-12 3 208-230 v

3 HP, 1 speed, Full Rated

Note - all 1 speed pump motors are energy-efficient models



2 Speed,  Full Rated,  WhisperFlo

H2O # Manf. # Model # HP Voltage Description
0860296 012530 WFDS-3 3/4  115 v

3/4 HP, 2 speed, Full Rated

0860299 011486 WFDS-4 1 230 v

1 HP, 2 speed, Full Rated

0860302 011522 WFDS-6 1-1/2 230 v

1-1/2 HP, 2 speed, Full Rated

0860305 011523 WFDS-8 2 230 v

2 HP, 2 speed, Full Rated

Note - all 2 speed pump motors are standard efficient models




Specifications:  1 Speed - WhisperFlo - Full Rated Pumps

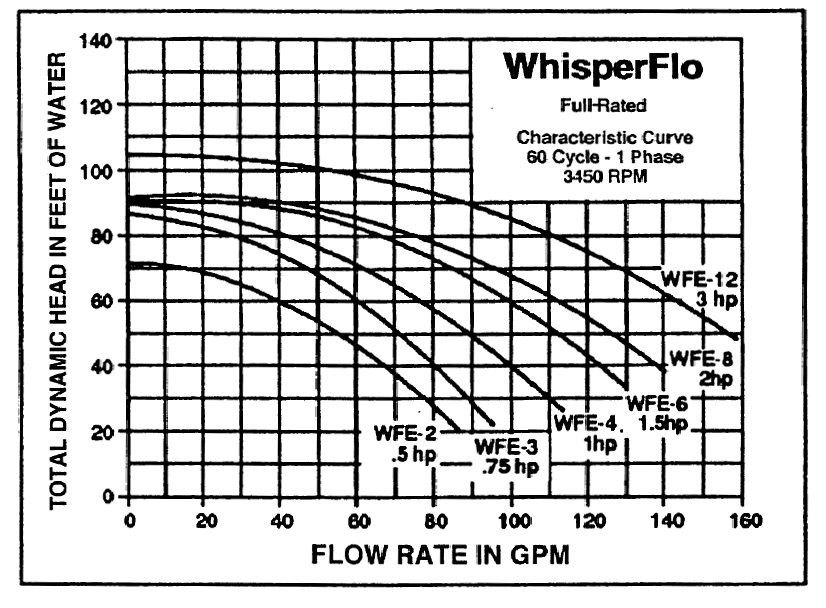

 H2O # Manf. # Model # Speeds  HP SF Voltage  Amps Length Pump CurveFlow Chart for single speed pumps
Click to Enlarge
0850301 011511 WFE-2 1 1/2 1.90 208-230 / 115 v 4.5-4.4 / 8.8 24.469"
0850304 011512 WFE-3 1 3/4 1.67 208-230 / 115 v 6.0-5.6/11.2 24.469"
0850307 011513 WFE-4 1 1 1.65 208-230 / 115 v 7.8-7.4/14.8 24.72"
0850310 011514 WFE-6 1 1-1/2 1.47 208-230 v 9.6 / 8.8 25.22"
0850313 011515 WFE-8 1 2 1.30 208-230 v 11.0 / 10.2 25.72"
0850316 011516 WFE-12 1 3 1.15 208-230 v 15.0 / 13.6 25.72"
Width = 10-7/8"    Height = 12-3/4


Specifications:
2 Speed - WhisperFlo - Full Rated Pumps

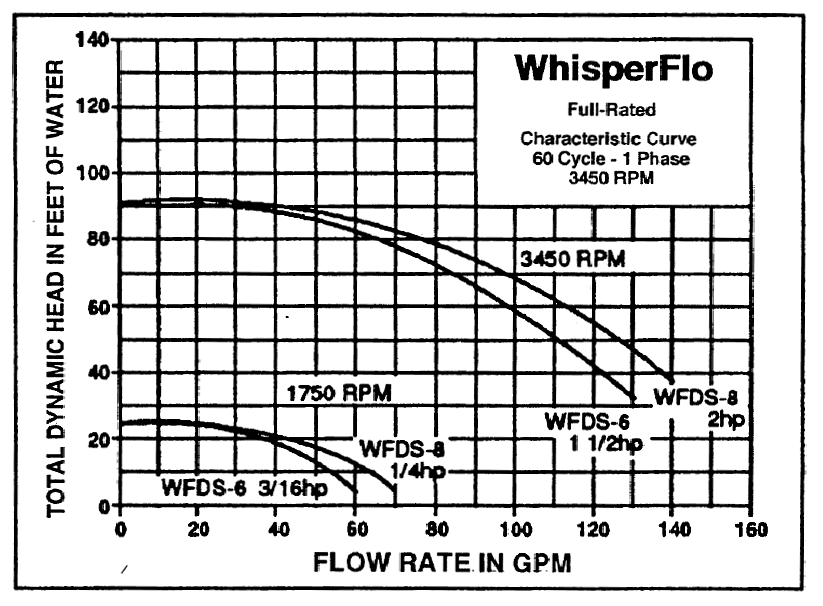

 H2O # Manf. # Model # Speeds  HP SF Voltage  Amps Length Pump CurveFlow Chart for dual speed pumps
Click to Enlarge
0860296 012530 WFDS-3 2 3/4  1.67 115 v 14.6 / 4.7 24.469"
0860299 011486 WFDS-4 2 1 1.65 230v 7.8 / 3.0 24.72"
0860302 011522 WFDS-6 2 1-1/2  1.47 230 v 10.0 / 3.5 25.22"
0860305 011523 WFDS-8 2 2  1.30 230 v 11.0 / 4.0 25.72"
Width = 10-7/8"      Height = 12-3/4"      High speed = 3450 RPM      Low Speed = 1725 RPM





 Replacement Motors for Single Speed WhisperFlo Pumps - Century Motors by Regal


Single Speed,  Full Rated

H2O # Pentair # Pump # HP Century # Voltage Description
1035103 ------------ WFE-2 1/2 B845 208-230 / 115 v

1/2 HP, Black Color, Single Speed

1035106 355008S WFE-3 3/4 BPA449V1 208-230 / 115 v

3/4 HP, Almond Color, Single Speed

1035109 355010S WFE-4 1 BPA450V1 208-230 / 115 v

1 HP, Almond Color, Single Speed

1035112 355012S WFE-6 1-1/2 BPA451V1 208-230 v

1-1/2 HP, Almond Color, Single Speed

1035115 355014S WFE-8 2 BPA452V1 208-230 v

2 HP, Almond Color, Single Speed

1035118 355016S WFE-12 3 BPA453V1 208-230 v

3 HP, Almond Color, Single Speed
