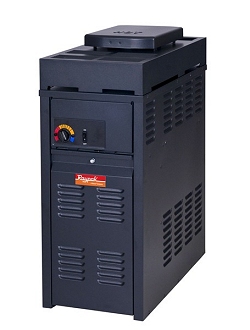

Compare feature to feature with any other electric spa heater, and
you’ll see why Raypak's 'Spa-Pak' sets the standard for performance. All
waterways are corrosion-free copper or bronze, not aluminum, which will
provide a longer, more dependable heater life. The 'Spa-Pak' features a
large size, heavy-duty incoloy heating element that far outlasts
ordinary water heating elements. The 'Spa-Pak' is easy to install with a
compact design that fits into small spaces. Full flow 1-1/2 in. MIP
inlet and outlet connections are conveniently located.
|
|
Raypak
Electric Heaters |
|
H2O # |
Manf. # |
Description |
|
2040205 |
001642 |
5.5 KW, 230 v, 26 AMP, model
552 |
|
2040209 |
001640 |
11 KW, 230 v, 52 AMP, model
1102 |
Specifications: |
|
H2O # |
Manf. # |
Size |
Volts |
Amps |
Height |
Width |
Depth |
|
2040205 |
001642 |
5.5 KW |
230 |
26 |
16-1/8" |
9-1/8" |
5-3/4" |
|
2040209 |
001640 |
11 KW |
230 |
52 |
23-1/8" |
9-1/8" |
5-3/4" |
|
|
|
