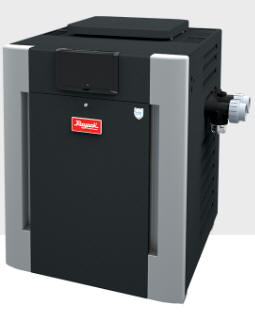

Digital Electronic LOW NOX Gas
Heaters -
Raypak |
|
Digital
Low NOx
Natural Gas Heaters
Digital temperature control with a LCD for temperature
selection and heater settings.
Data Sheet
Owner's Manual
Parts List |
|
Raypak’s Digital not only looks smart, it works smart too! Digital temperature control with a LCD for
temperature
selection and heater settings. Two level Smart diagnostics, one
for
homeowner and another for service technician. On the easy to
read control
panels is a clever display of self-diagnostic LED lights that
let the
homeowner quickly and easily pinpoint minor problems. Behind the
front
panel is a more comprehensive array of service diagnostics to
immediately
direct technicians to the source of trouble.
The air fuel mixture is maintained by a gas valve/blower system
that allows the heater to always burn clean and safe. Unitherm Plus flow
system
controls both water temperature and flow to eliminate
condensation,
sooting and scale build-up.
 Residential
heaters utilize Polymer headers and Commercial ASME models have
Brass headers. Residential and ASME heaters come with a set of 2" slip fit CPVC water connections to
make the installation secure and effortless.
Top included for outdoor installation.
Purchase stack
top
separately for indoor installations.
|
|
All heaters listed are
0 - 5,000 feet.
|
|
Digital Low NOx Natural Gas Heaters |
|
H2O # |
Manf. # |
Description |
|
2271001 |
009240 |
207,000 BTU, model P-R207AL, Low NOx, Natural, Electronic |
|
2271002 |
009241 |
267,000 BTU, model P-R267AL, Low NOx, Natural,
Electronic |
|
2271003 |
009242 |
337,000 BTU, model P-R337AL, Low NOx, Natural,
Electronic |
|
2271004 |
009243 |
407,000 BTU, model P-R407AL, Low NOx, Natural,
Electronic |
|
2271005 |
017705 |
207,000 BTU,
ASME, model B-R207A, Low NOx, Natural, Electronic |
|
2271006 |
017706 |
267,000 BTU,
ASME, model B-R267A, Low NOx, Natural, Electronic |
|
2271007 |
017707 |
337,000 BTU,
ASME, model B-R337A, Low NOx, Natural, Electronic |
|
2271008 |
017708 |
407,000 BTU,
ASME, model B-R407A, Low NOx, Natural, Electronic |
* Note ASME
heaters have the same specifications as the non-ASME heaters
but use Brass Headers and have been certified ASME for commercial
installations. |
Specifications: |
|
BTU |
Height* |
Width |
Depth |
|
207,000 |
34" |
20" |
28" |
|
267,000 |
34" |
23" |
28" |
|
337,000 |
34" |
26" |
28" |
|
407,000 |
34" |
29" |
28" |
|
*
height with
low profile outdoor top, add stack height if stack kit is needed |
|
|
Stack
/ Vent Kits
- Raypak |
|
 |
|
|
|
H2O # |
Manf. # |
Description |
|
2270931 |
009838 |
207,000 BTU Indoor
Stack Kit |
|
2270934 |
009839 |
267,000 BTU Indoor
Stack Kit |
|
2270937 |
009840 |
337,000 BTU Indoor
Stack Kit |
|
2270940 |
009841 |
407,000 BTU Indoor
Stack Kit |
Specifications: |
|
Model |
Style |
Height* |
Vent Diam. |
|
207,000 BTU |
Indoor |
23-5/8" |
6" |
|
267,000 BTU |
Indoor |
24" |
7" |
|
337,000 BTU |
Indoor |
25" |
8" |
|
407,000 BTU |
Indoor |
26-1/2" |
9" |
|
*
stack only, add heater height
for total height |
|
|
Optional
Power Vents
- Raypak |
|
Owner's Manual
|
|
Compatible for indoor or outdoor installation
For use with all Raypak Digital models.
Certified
The D-2 Power Vent assembly is tested and certified to the latest
edition of the American National Standard ANSI Z21.56 for pool heaters.
Through the Wall Capable
The D-2 Power Vent assembly is a Category III mechanical draft venting
system that operates with a positive vent static pressure and with a
vent gas temperature that avoids excessive condensate production in the
vent. All sizes are capable of relieving flue gases up to a maximum of
100 equivalent feet of vent length. All models have a 4” diameter
exhaust connection.
Multi-Position
Using the supplied adjustable 90° elbow, the flue gases may be
discharged in any direction (see D-2 Power Vent manual for details). Or
simply remove the elbow for vertical venting.
Dual Voltage Induced Draft Blower (120/240 VOLT)
Factory set for 240 volts. Can be rewired in the field for 120v
operation.
Safety at Its Best
The D-2 Power Vent is equipped with a draft proving switch. This switch
ensures that the blower is operating before operating your heater. It is
also equipped with a solid state control that allows the blower to purge
any residual gas buildup in the heater after the heater has shut down.
|
|
H2O # |
Manf. # |
Description |
|
2270245 |
009832 |
D-2
Indoor Power Vent for 206,000 thru 267,000 BTU Models |
|
2270252 |
009833 |
D-2
Indoor Power Vent for 336,000 thru 407,000 BTU Models |
|
|
