IntelliTouch™
- Pool/Spa Controls Systems -
Pentair
Skip IntelliTouch and goto next control |
|
 IntelliTouch
systems
offer the flexibility to handle from 5 to 10 circuits that can be used to
control any combination of pumps, lights, water features, etc. By the use of
additional Expansion Kits and Load or Power Centers, up to 40 aux circuits can
be controlled. As an added benefit, user-configurable circuits can also be
used to control these combinations of features and more. The ' Feature Macro
Circuits ' feature allows any number of circuits to be combined on a single
button. This gives you the ability to set up “themes” with custom names all
with a press of a button. (Not available with IntelliTouch model i5 or i5S).

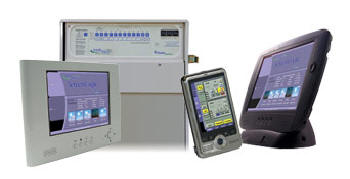

The IntelliTouch system can utilize
multiple wired and wireless controllers including the Digital Tablet,
Personal
Digital Assistant (PDA), the wired in-wall Touch Screen, Indoor Control
Panel, and the wireless MobileTouch
control panel, and even your existing home PC.
|
|
Ordering a System
— To make up a complete
IntelliTouch™ system, a 3-Step process is required along with any
options you may want to chose.
Step 1 - Enclosure Kit ( Load Center
or Power Center )
— The Enclosure kit
is the foundation of all systems. It is the electrical panel that is
installed at the equipment pad. By design, a Load Center or Power Center do
not include any control panel or circuit
board which are installed in the field by the electrician. These are
included in the different Personality Kits.
All Load Centers do include five 25 Amp 3 HP relays
and a 115v/ 230v circuit breaker base.
A Load Center acts as a sub panel which can accommodate circuit breakers.
Optional built-in transformer for salt chlorine generators.
A Power Center does not
include a circuit breaker base. Optional built-in transformer for salt
chlorine generators.
Step 2 - Personality Kit
— The Personality Kit is what distinguishes the
system. The Personality Kit contains the Valve Actuators (where applicable),
Temperature Sensors
and any 3 HP Relays that may be needed to complete the system. It also
includes the Personality ( Circuit board/Indicator ) Panel which is mounted in the Load
Center Enclosure.
Step 3 - Interface Kit
— The Interface Kit is basically the controls which are used to operate
the system by the user. Multiple wired or wireless control devices can
be used.
Options - Optional
Expansion Kits and Accessories
|
|
Step
1 - Choose a Enclosure Kit ( Load Center or Power Center
) -
IntelliTouch Controls
|
|
Load
Center
( built in sub panel base )
|
|
Load Center - Includes built-in sub panel. (125
amps) capable of holding up to eight 1" breakers. Also includes five
25 AMP 3HP relays, 115/230V transformer with secondary side circuit
protection. Multiple knockouts for 1/2 inch to 1" conduit are supplied
as well as a GFCI side knock out. (GFIC not included) The Load Center
provides ample space for all high and low voltage wiring needs.
|
H2O # |
Manf. # |
3 HP Relays
|
Circuit Breaker
Base Capacity |
**Intellchlor**
Transformer |
Size |
|
Std. |
Max |
|
3030209 |
521215 |
5 |
10 |
4 qty. @ 230 Volts |
NO |
22-1/2" H x 17" W x 4.8" D |
|
3030210 |
521213 |
5 |
10 |
4 qty. @ 230 Volts |
YES |
22-1/2" H x 17" W x 4.8" D |
|
**Includes
Chlorine Generator Transformer** |
Power Centers ( as of June
30th, 2011 )
offer optional built-in transformer for salt
chlorine generators.
( Compatible with most of the popular chlorine generator systems )
|
|
Power
Center
( no sub panel base )
|
|
Power Center - Does not Include a circuit breaker
base. Users should choose this enclosure if they already have a existing
circuit/sub-panel for their equipment. This power center includes
five 25 AMP 3HP relays and 115/230V transformer with secondary side
circuit protection. Special Order Item
|
|
H2O # |
Manf. # |
3 HP Relays
|
Circuit Breaker
Base Capacity |
**Intellchlor**
Transformer |
Size |
|
Std. |
Max |
|
3030211 |
521216 |
5 |
10 |
NONE |
NO |
17" H x 17"W x 4.8" D |
|
3030212 |
521214 |
5 |
10 |
NONE |
YES |
17" H x 17"W x 4.8" D |
**Includes
Chlorine Generator Transformer**
Special Order |
Power
Centers ( as of June 30th, 2011 )
offer optional built-in transformer for salt
chlorine generators.
( Compatible with most of the popular chlorine generator systems )
|
|
Continue to next page for Step 2 |
|
