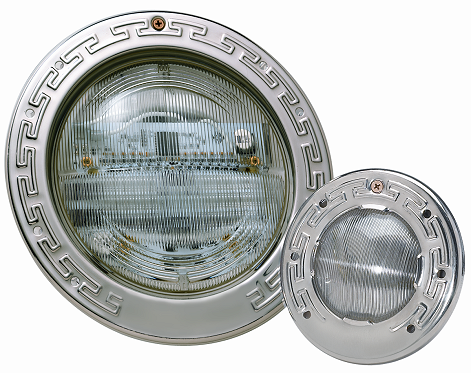

IntelliBrite 5g White LED - Pool and Spa - Pentair

IntelliBrite^®
5g White LED

( click picture to enlarge )

Data Sheet 5g Pool Light
Owner's Manual for 5g Pool Light

See how energy cost compare
between LEDs and Incandescent
Pool Lights by visiting Pentair's
Energy Cost Calculator Here

IntelliBrite^® 5g White LED offers a brighter more efficient alternative to incandescent pool white lighting by utilizing its array of LEDs which are equivalent to 500 watts of incandescent light. This is ideal for commercial applications because of the energy cost savings. They use 86% less electricity than incandescent and halogen pool lights. The spa light models are equivalent to 100 watts of incandescent light.
*Note* LED Lights CAN NOT be used with a dimmer switch.

Features:

The brightest most energy efficient white LED pool light on the market
Energy efficient utilizing up to 85% less energy than comparable incandescent lights
Lens geometry and reflector design combine to create a wider beam and more uniform light distribution
Pool lens can be rotated to 180 degrees to provide wide beam pattern (standard) or narrow beam pattern
Compatible with Pentair stainless steel and plastic niches
Available in 120V and 12V versions. ( lights not listed are special order )
Available in 300W, 400W and 500W incandescent equivalencies. ( lights not listed are special order )
LED technology provides longer bulb life

LED 5g White Pool Lights
H2O #	Manf. #	Description
3230214	601301	120 volt, 50 foot cord, equivalent to 500 watt incandescent lights
3230218	601302	120 volt, 100 foot cord, equivalent to 500 watt incandescent lights
3230221	601303	120 volt, 150 foot cord, equivalent to 500 watt incandescent lights
Consumption 70 watts Compatible with all niches listed on catalog page F-10 Also available in 12 volt versions and versions which are equivalent to 300 watt and 400 watts incandescent lights

LED White Spa Lights
H2O #	Manf. #	Description
3230222	640141	120 volt, 50 foot cord, equivalent to 100 watt incandescent lights
3230224	640142	120 volt, 100 foot cord, equivalent to 100 watt incandescent lights
3230226	640143	120 volt, 150 foot cord, equivalent to 100 watt incandescent lights
Consumption 45 watts Compatible with all niches listed on catalog page F-9 Also available in 12 volt versions

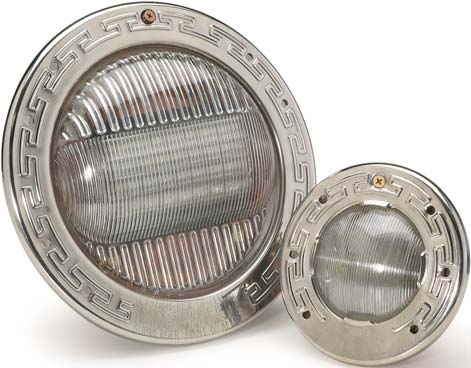

IntelliBrite 5g Color-Changing LED - Pool and Spa - Pentair

( click picture to enlarge )

Data Sheet 5g Color Pool Light
Owner's Manual 5g Color Pool Light
Owner's Manual for Color Spa Light

An Eco Select™ Brand Product:
IntelliBrite and IntelliBrite 5g are among
Pentair Water Pool and Spa's greenest
and most efficient choices.

The 5g Pool Light is now slimmer.

IntelliBrite® 5g automated color-changing pool and spa lights feature LED technology is the wave of the future in energy efficiency, lifetime value, quality of light, and controllability. With IntelliBrite 5g, combinations of individual colored LEDs are mixed and matched to achieve a vibrant spectrum of colors. These combinations are power sequenced to illuminate and cycle through colors at varying speeds, and in different sequences of color. Combined with a custom reflector and unique lens design, the IntelliBrite 5g offers super efficiency while being the brightest yet most energy efficient underwater LED light available. Note LED Lights CAN NOT be used with a dimmer switch. Features:
A superior reflector design assures more light is directed toward the pool bottom to further increase intensity and color effects, while minimizing glare Superior lens geometry distributes light in an optimum way to avoid “hot spots” on the pool bottom. Light intensity and color are distributed more uniformly throughout your pool Lens can be rotated to 180 degrees to provide wide beam pattern (standard) or narrow beam pattern. IntelliBrite technology makes use of the brightest LEDs available in underwater pool and spa lights - up to 50% less energy consumptions than competitor's lights. Set one of 5 predetermined fixed colors to match or create the mood for the evening – blue, green, magenta, white, and red or select from 7 popular "color shows" that come preprogrammed into IntelliBrite IntelliBrite was designed to work with IntelliTouch^® and EasyTouch^® the leading control systems for pool, spa, and poolscape equipment automation. In effect, you transfer control of IntelliBrite to the IntelliTouch or EasyTouch system which controls all your other backyard and pool features. IntelliBrite 5g Color Pool lights are backwards compatible with first generation IntelliBrite lights.
LED 5g Color Pool Lights
H2O #	Manf. #	Description
3230228	601000	120 volt, 30 foot cord, consumption 70 watts
3230231	601001	120 volt, 50 foot cord, consumption 70 watts
3230234	601002	120 volt, 100 foot cord, consumption 70 watts
3230236	601003	120 volt, 150 foot cord, consumption 70 watts
Compatible with all niches listed on catalog page F-10 Also available in 12 volt versions

LED Color Spa Lights

H2O # Manf. # Description

3230237 640120
120 volt, 30 foot cord, consumption 45 watts

3230240 640121
120 volt, 50 foot cord, consumption 45 watts

3230243 640122
120 volt, 100 foot cord, consumption 45 watts

3230245 640123
120 volt, 150 foot cord, consumption 45 watts

Compatible with all niches listed on catalog page F-9
Also available in 12 volt versions

Fixed Color Choices

7 Standard light Shows
Your browser does not support inline frames or is currently configured not to display inline frames.

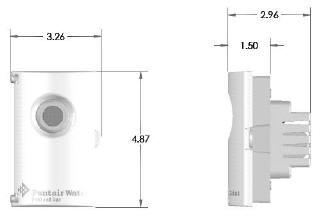

IntelliBrite Controller - Pentair

Owners Manual

IntelliBrite^® Controller Provides Fast, Easy Access to 12 Color Modes.

The IntelliBrite™ Controller provides complete control of Pentair Water Pool and Spa® IntelliBrite underwater LED (light-emitting diode) lights, and IntelliBrite LED landscape lights. It’s easy to select a lighting feature, just dial in any one of the pre-programmed color light shows or fixed colors. Using the Hold and Recall buttons you can also create endless unique lighting effects. The IntelliBrite Controller can control individual or multiple IntelliBrite LED lights. Multiple IntelliBrite LED lights can be connected via a junction box to an IntelliBrite Controller so that all lights can be switched on and off together. IntelliBrite LED lights are fully compatible with Pentair IntelliTouch® and EasyTouch® automation system.

Features:

Waterproof Outdoor LED Color Light Controller
Quick access to all colors and shows
Convenient hold and recall function
Fits in 22.5 cu.in. single gang box or larger
Illuminated power button

IntelliBrite Controller
H2O #	Manf. #	Description
3230246	600054	IntelliBrite Controller, 120 V
