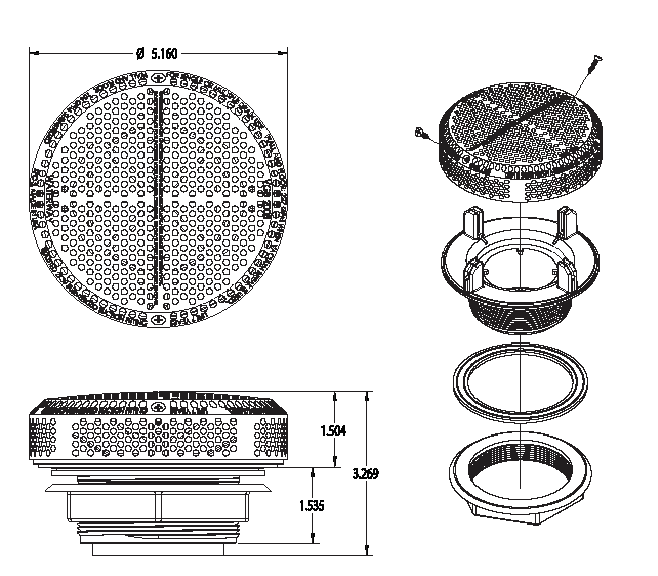

Waterway Spa Suctions
- VGB Compliant - WaterWay |
|
VGB Compliant
|
|
Wall Flow Rate = 180 GPM @ 6.42 ft/sec
Flow Rate GPM @ 1.5 ft/sec = 42
Total Open Area = 9.02 sq/inches
|
|
5"
Spa Suction - VGB Compliant |
|
H2O # |
Manf. # |
Description |
|
4062405 |
640-3580V |
White, 5", Super Hi-Flo
Suction, 2-1/2" Slip |
|
4062408 |
640-3587V |
Gray, 5", Super Hi-Flo
Suction, 2-1/2" Slip |
 |
Detailed Spec Sheet: |
|
|

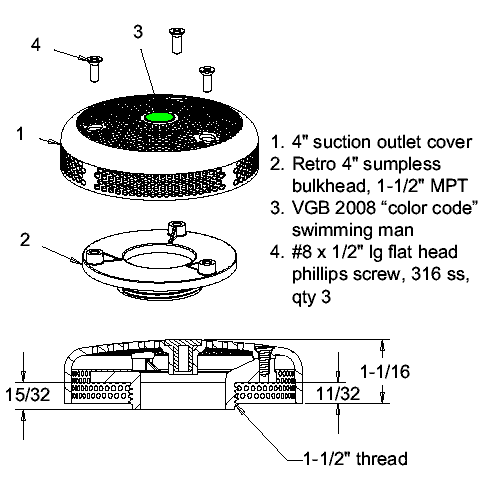

AquaStar Spa Suction Retrofit
-
VGB Compliant |
|

|
|
Retrofit - Replaces cover on Hydro-Air's Hi-volume suction #
10-6800 for VGB compliance. ( see Hydro-Air below )
Does not require the replacement of the suction fitting itself, just the
cover.
Old cover screwed onto body of suction with 1-1/2" male threads.
Does not work on Slimline suctions.
For
retrofit,
two components are required. One Cover and One Adapter Plate.
|
|
4" Spa Suction Cover Retrofit-
VGB Compliant |
|
H2O # |
Manf. # |
Description |
|
4472368 |
4HP101 |
Cover White, 4"
round retrofit cover w/ 3 mounting screws |
|
4472390 |
4HP103 |
Cover Gray, 4"
round retrofit cover w/ 3 mounting screws |
|
4472410 |
R415T101 |
Adapter Plate (
bulkhead ) for cover, 1-1/2" male threaded |
|
Detailed Spec Sheet: |
|
|
Spa Suctions
- VGB Compliant |
|
Suctions are sold in individual components
Suction Nut, Gasket & Thru Wall
( some people prefer not to use the gasket )
+
Adapter Plate & Cover
#4 #5
-----------------------------------------
 Thru
Wall Measurement
|
Components |
|
H2O # |
Manf. # |
Description |
|
4033550 |
30-6104WHT |
#1 --- Hydro-Air PVC Suction Nut
1-1/2" Slip or 2" Spigot |
|
4033555 |
30-3804CLR |
#2 --- Gasket |
|
4033560 |
30-3801WHT |
#3 --- WHITE - Thru Wall Fitting, Front has 1-1/2" threads which
accommodates the threaded cover adapter ( 4472410 ),
2-3/8" hole saw |
|
4472410 |
R415T101 |
#4 ---
Adapter Plate ( bulkhead ) for cover,
1-1/2" male threaded |
|
4472368 |
4HP101 |
#5 ---
WHITE -4" round retrofit cover w/ 3 mounting screws |
|
4472390 |
4HP103 |
#5 ---
GRAY -4" round retrofit cover w/ 3 mounting screws |
Installation Tool |
|
H2O # |
Manf. # |
Description |
|
4033921 |
30-7825 |
Installation Wrench for
suction fittings ( also fits HydroAir strip style skimmers ) |
|
|
Retrofit Cover
- Retrofit for 6" Hydro-Air Suction Cover by
Aquastar |
|
|
6" Retrofit Cover for Hydro-Air |
|
H2O # |
Manf. # |
Description |
|
4472405 |
6HPHA101 |
6" White VGB Compliant retrofit
replacement cover from AquaStar.
Replaces Hydro-Air #30-6011 and 30-6200 drain covers. Special Order
Incudes 4 Cover Screws |
|
4472406 |
6HPHA103 |
6" Light Gray VGB Compliant retrofit
replacement cover from AquaStar.
Replaces Hydro-Air #30-6011 and 30-6200 drain covers.
Incudes 4 Cover Screws |
|
|
|
|
|
|
