Suction is comprised of 4 items.
Long wall fitting ( with eyeball removed )
and an Adapter that adapts a VGB
Cover to LongWall.
Long wall fitting includes gasket
but does not
include the nut.
Note, when replacing a suction fitting
as a repair, the cover may not clear
the floor of the tub if the the original suction was drill too close to the
bottom.
 Thru
Wall Measurement
Hole saw size = 2-3/8"
Jet Long Wall Fitting
comes with
EyeBall , Eyeball Retaining Ring,
and
Gasket. Does Not Include Lock Nut.
Nut sold separately.
|
Suction |
|
H2O # |
Manf. # |
Description |
|
4033200 |
10-3300BRN |
Brown, Standard long wall
eyeball fitting
with nut,
****
2-1/2" thread length for wood tubs,
1-1/2" Slip, 2-3/8" hole size |
|
4472390 |
4HP103 |
Gray Cover, 4"
round retrofit cover w/ 3 mounting screws |
|
4472410 |
R415T101 |
Adapter Plate (
bulkhead ) for cover, 1-1/2" male threaded |
|
****
Eyeball and
retainer ring will not be used |
|
Air Control
|
|
H2O # |
Manf. # |
Description |
|
4033706 |
10-2200BRN |
Brown, 1/2"
Standard Mini Air Control, draws air from top
straight back, 1/2" Slip, 1-1/16" hole size |
|
Jet and Venturi
|
|
H2O # |
Manf. # |
Description |
|
4033200 |
10-3300BRN |
Brown, Standard long wall
eyeball fitting
with gasket.
Does not
include H2O# 4033565 Lock Nut.
2-1/2" thread length for wood tubs,
1-1/2" Slip, 2-3/8" hole size |
|
4033222 |
10-4300 |
Venturi with 1/4"
Nozzle - 1-1/2" Spg x 1-1/2" Spg x 3/4" Slip Air |
|
4033565 |
30-3807WHT |
Lock Nut - White |

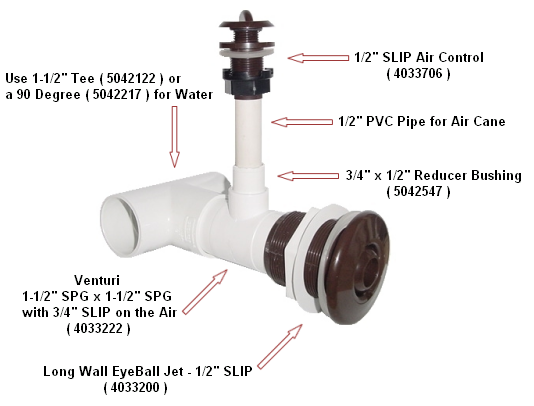

Jet Breakdown
|
