Save valuable fittings and time with inside pipe connectors.
Couples two schedule forty pipes together by gluing to the inside of both pieces of pipe.
Results in glued joint with no increase in outside diameter at the joint.
A life saver in tight spots where pipes are stacked tight together.
Will decrease inside pipe diameter resulting in slight flow restriction.

1" Insider pipe connector / coupler,
fits inside 1" schedule 40 pipe

1-1/2" Insider pipe connector / coupler,
fits inside 1-1/2" schedule 40 pipe

2" Insider pipe connector / coupler,
fits inside 2" schedule 40 pipe

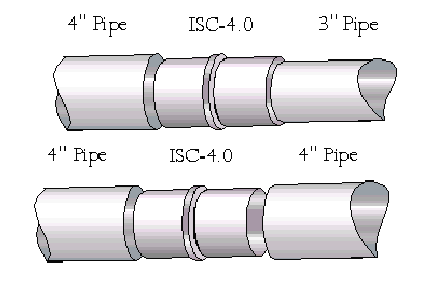

Couples two schedule forty pipes together by gluing to the inside of both pieces of pipe. Results in glued joint with no increase in outside diameter at the joint. A life saver in tight spots where pipes are stacked tight together. The three inch and four inch unit doubles as either an inside coupling or a reducing bushing. The four inch fits inside four inch schedule forty pipe on both ends. It can also be used as a three inch outside coupling on both ends and therefore as a four inch inside to three inch outside reducing bushing. The three inch performs a similar function with three inch and two inch schedule forty pipe.


3" Inside pipe coupler / reducer, fits inside 3" schedule 40 pipe,
will also reduce 3" pipe to 2" slip fitting.

4" Inside pipe coupler / reducer, fits inside 4" schedule 40 pipe,
will also reduce 4" pipe to 3" slip fitting.

The fitting extender is designed to go over a fitting when there is not enough pipe left to make a connection.
In some cases it may be necessary to remove raised areas on the existing fitting.
This can generally be done easily with sandpaper, rasp or file.

1-1/2" fitting extender,
fits over 1-1/2" fitting

2" fitting extender,
fits over 2" fitting x 2" SPG or 1-1/2" Slip
