 Replacement Diving Boards - Inter-Fab




Board Only - stand not included
Olympian


Board Only - stand not included
Commercial


Board Only - stand not included
Duro-Beam



 Techni-Beam



 Link to Inter-Fab Website






Olympian and Commercial Board Features:

Solid Laminated Core
Durable Non-Fading, Skid Resistant Acrylic Surface
Fiberglass Reinforced for Superior Strength
Smooth Resin Finish on Bottom of Board

Duro-Beam Board Features:

Dual Beam Laminated Core
Durable Non-Fading, Skid Resistant Acrylic Surface
Fiberglass Reinforced for Superior Strength

Techni-Beam Board Features:

Wide Solid Laminated Core
Durable Non-Fading, Skid Resistant Acrylic Surface
Fiberglass Reinforced for Superior Strength


Inter-Fab Diving Boards with bolt kit
H2O # Manf. # Description
6261050 OLY8 W W

Olympian Diving Board, 8 foot white with bolt kit
6261075 OLY10 W W

Olympian Diving Board, 10 foot white with bolt kit
6261080 COM12W W

Commercial Diving Board, 12 foot white with bolt kit
6261090 DB8 W W

Duro-Beam Diving Board, 8 foot white with bolt kit
6245310 TB8 W W

Techni-Beam Diving Board, 8 foot white with bolt kit
6245318 TB10W W

Techni-Beam Diving Board, 10 foot white with bolt kit
Board Only - stand not included




S.R.Smith / Inter-Fab Cross Reference
Description S.R.Smith # H2O #   Description Inter-Fab # H2O #

Glashide
 8 foot White

66-209-208S2-1 6245101 = Olympian
 8 foot white		 OLY8 W W 6261050
Glashide
 10 foot White 		66-209-210S2-1 6245107 = Olympian
 10 foot white		 OLY10 W W 6261075
Glashide
 12 foot White 		66-209-2122-1 6245113 = Commercial
 12 foot white		 COM12 W W 6261080
Fibre-Dive
8 foot White 		66-209-268S2-1 6245213 = Duro-Beam
 8 foot white		 DB8 W W 6261090
Frontier III
8 foot White 		66-209-598S2 6245309 = Techni-Beam
 8 foot white		 TB8 W W 6245310
Frontier III
10 foot White 		66-209-600S2 6245317 = Techni-Beam
10 foot white		 TB10W W 6245318

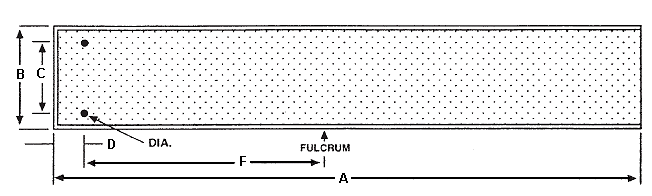

 Model  Nominal Length A  B C  D F Bolt Hole
Diameter
Olympian 8 foot  8'  94.00"  17.25"  12.00"  4.00"  30.00" 19/32"
Olympian 10 foot  10'  117.50"  17.25"  12.00"  4.00"  52.00"  19/32"
Commercial 12 foot  12'  142.00"  17.50"  12.00"  4.00"  74.00"  19/32"
Duro-Beam 8 foot  8'  94.00"  17.25"  12.00"  4.00"  40.00"  19/32"
Techni-Beam 8 foot  8'  94.00"  17.25"  12.00"  4.00"  40.00"  19/32"
Techni-Beam 10 foot  10'  117.50"  17.25"  12.00"  4.00"   52.00"  19/32"
