 Skimmer Baskets


Click on baskets to view enlarged picture
Skimmer or Aladdin Cross Ref Num H2O # Manf. # Specs

Click To Enlarge

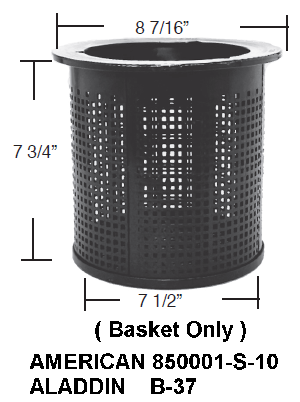

Aladdin B-37
American 850001-S-10

( Used with American Floating Weir  B-38 below, fits inside )

 9093037 Aladdin
B-37

Top
8-7/16"
Height
7-3/4"
Bottom
-

Click To Enlarge

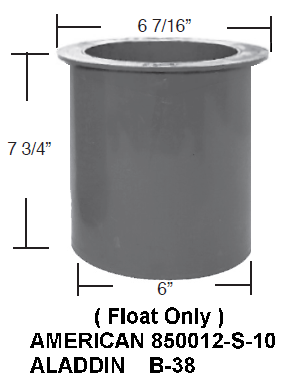

American
Floating Weir

(used with B-37 above)

 9093038 Aladdin
B-38

Top
6-7/16"
Height
7-3/4"
Bottom
-

Click To Enlarge

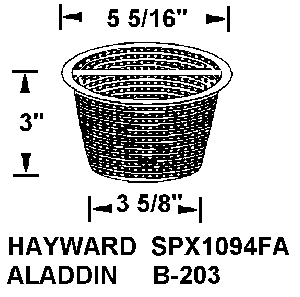

Hayward
Aladdin B-203

 9396261 Hayward
SPX1094FA

Top
5-5/16"
Height
3"
Bottom
3-5/8"

Click To Enlarge

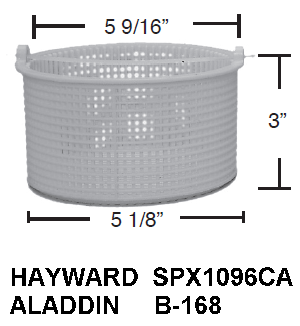

Hayward SPX1096CA
 Aladdin B-168

 9396321 Aladdin
B-168

Top
5-9/16"
Height
3"
Bottom
5-1/8"

Click To Enlarge

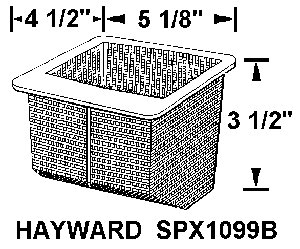

Hayward Spa Skimmer

 9396351 Hayward
SPX1099B

Top Back
5-1/8"
Height
3-1/2"
Top Sides
4-1/2"




Skimmer or Aladdin Cross Ref Num H2O # Manf. # Specs

Click To Enlarge

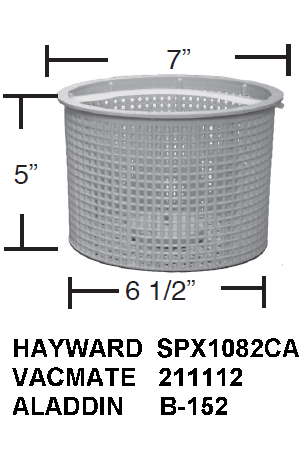

Aladdin B-152
Vacmate 211112
Hayward SPX1082CA

 9093152 Aladdin
B-152

Top
7"
Height
5"
Bottom
6-1/2"

Click To Enlarge


Aladdin B-9 for U-3
Sta-Rite U-3  (Pentair)
Bermuda Pentair
Hayward SPX1070E

Has brass handle which
weights down basket

 9878230 Pentair
08650-0007

Top
8-5/16"
Height
5-3/16"
Bottom
5-3/4"

Click To Enlarge

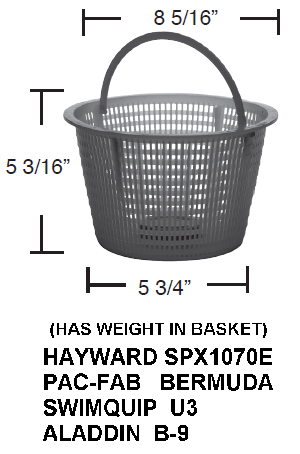

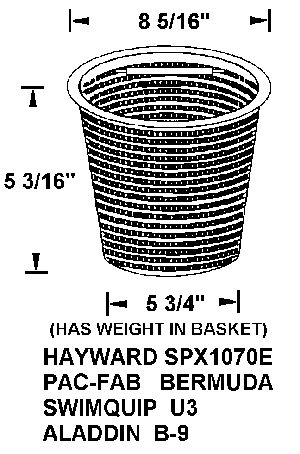

Aladdin B-9 for U-3
Sta-Rite U-3  (Pentair)
Bermuda Pentair
Hayward SPX1070E

Has weight in bottom
Plastic Handle

 9093009 Aladdin
B-9

Top
8-5/16"
Height
5-3/16"
Bottom
5-3/4"

Click To Enlarge

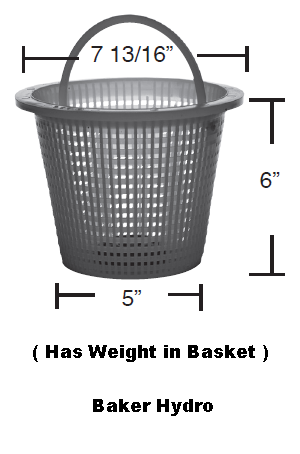

Aladdin B-136
Baker Hydro


 9093136 Aladdin
B-136

Top
7-7/8"
Height
6"
Bottom
5"

Click To Enlarge

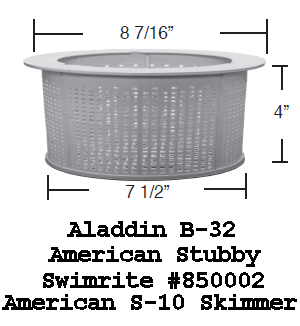

Aladdin B-32
American Stubby
Swimrite #850002
American S-10

9093023 Aladdin
B-32

Top
8-7/16"
Height
4"
Bottom
7-1/2"
