 Max-E-Pro Pumps - Sta-Rite




Max-E-Pro pool / spa pumps


Data Sheet
Owner's Manual
View Parts Breakdown



Link to Pentair Pool Products® and Sta-Rite® brands






The Max-E-Pro Pumps are Sta-Rite’s premier pumps and are featured in many showcase pool installations. They didn’t get there by chance. Pool professionals prefer the Max-E-Pro Pumps for their powerful, efficient performance and extremely quiet operation.


Features:

  Typical Installation – In-ground pools, pool/spa combinations, in-ground spas, fountains and water features
  Self-priming – Suction lift up to 15' above water level
  Easy-to-Install – 2" ports include external and internal threads for more plumbing options
  Includes Quick-disconnect plumbing unions.
  Superior Hydraulic Design – Moves larger volumes of water, resulting in lower operating costs
  Noryl® Impeller – Withstands the toughest water environments
  Viton Shaft Seal – Longer-lasting seal stands up to the harshest environments
  Self-lubricating Lid O-ring – Does not require lubricant
  Quick-Lock trap cover


1 Speed,  Full Rated,  Max-E-Pro

H2O # Manf. # HP Voltage Description
0850575 P6E6C-204L

1/2

115 / 230 v

1/2 HP, 1 speed, Full-Rated ***

0850578 P6E6D-205L

3/4

115 / 230 v

3/4 HP, 1 speed, Full-Rated ***

0850581 P6E6E-206L

1

115 / 230 v

1 HP, 1 speed, Full-Rated

0850584 P6E6F-207L

1-1/2

230 v

1-1/2 HP, 1 speed, Full-Rated

0850587 P6E6G-208L

2

230 v

2 HP, 1 speed, Full-Rated

0850590 P6E6H-209L

3

230 v

3 HP, 1 speed, Full-Rated

Unions are included - PK-188 - ( 2" Unions Half  X  2" Slip, Package of 2 )
*** Special Order



2 Speed,  Up-Rated,  Max-E-Pro

H2O # Manf. # HP Voltage Description
0860520 P6RA6YF-206L 1-1/2 230 v

1-1/2 HP, 2 speed, Up-Rated

0860523 P6RA6YG-207L 2 230 v

2 HP, 2 speed, Up-Rated

Unions are included - ( 2" Unions Half  X  2" Slip, Package of 2 )




Specifications:  1 Speed, Full Rated, Max-E-Pro

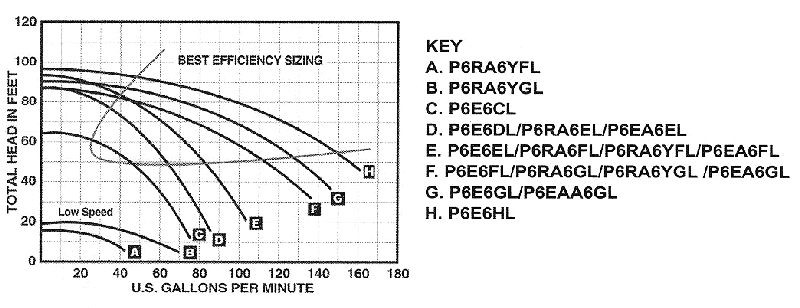

 H2O # Manf. # Speeds  HP Voltage  Amps Length Pump CurveFlow Chart for Up-Rated Challenger
Click to Enlarge
0850575 P6E6C-204L 1 1/2 115/230 11.0 / 5.5 27"
0850578 P6E6D-205L 1 3/4 115/230 13.8 / 6.9 27-1/2"
0850581 P6E6E-206L 1 1 115/230 16.0 / 8.0 28-1/4"
0850584 P6E6F-207L 1 1-1/2 230 10.4 28-1/4"
0850587 P6E6G-208L 1 2 230 11.2 28-3/4"
0850590 P6E6H-209L 1 3 230 15.8 29-1/4"
Height = 14-1/2"     Width = 11-1/4"


Specifications:
2 Speed, Up-Rated, Max-E-Pro
 H2O # Manf. # Speeds  HP Voltage  Amps Length Pump CurveFlow Chart for 5 HP Challenger
Click to Enlarge
0860520 P6RA6YF-206L 2 1-1/2 230 9.2 / 2.5 28"
0860523 P6RA6YG-207L 2 2 230 10.1 / 3.7 28-1/2"


Height = 14-1/2"     Width = 11-1/4"
