 Dyna-Pro Pumps - Sta-Rite



Duraglas II series pumps

 Data Sheet
Owner's Manual
View Parts Breakdown


Link to Pentair Pool Products® and Sta-Rite® brands


Dyna-Pro is a rapid, self-priming, medium head pump with an extra large, integral hair and lint strainer.
Dyna-Pro is precision molded with Sta-Rite's exclusive thermoplastic composite resin that is highly
corrosion  resistant.

Features:

  Precision-fit internal components and a specially designed sound-dampening base.
  Heavy-duty construction and a motor rated for continuous operation.
  The high-capacity trap holds a large amount of debris.
  The Cam and Ramp™ lid is easy to remove and locks in place with a quarter turn.
  Includes Quick-disconnect plumbing unions.


1 Speed,  Up-Rated,  Dyna-Pro
H2O # Manf. # HP Voltage Description
0850514 MPRA6D-204L

3/4

115 / 230 v

3/4 HP, 1 speed, Up-Rated
0850517 MPRA6E-205L

1

115 / 230 v

1 HP, 1 speed, Up-Rated
0850520 MPRA6F-206L

1-1/2

115 / 230 v

1-1/2 HP, 1 speed, Up-Rated
0850523 MPRA6G-207L

2

115 / 230 v

2 HP, 1 speed, Up-Rated **

Unions are included - PK-188 - ( 2" Unions Half  X  2" Slip, Package of 2 )
** Special Order Item



Specifications:  1 Speed,  Up-Rated,  Dyna-Pro

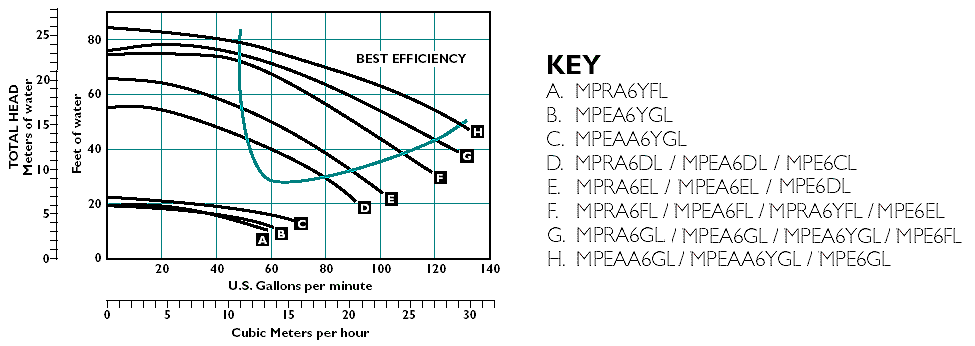

 H2O # Manf. # Speeds  HP S.F. Voltage  Amps Length Pump CurveFlow Chart for Up-Rated Challenger
 Click to Enlarge
0850514 MPRA6D-204L 1

3/4

 1.27

115 / 230 v

 13.4 / 6.7 25-1/8"
0850517 MPRA6E-205L 1

1

 1.25

115 / 230 v

 15.3 / 7.6 25-1/2"
0850520 MPRA6F-206L 1

1-1/2

 1.10

115 / 230 v

 19.2 / 9.6 26-1/2"
0850523 MPRA6G-207L 1 2 1.10 230 v 12 27"
Height = 13-3/4"
