No Longer Available
APPLICATIONS
Waterfalls and Water Features
Sewage, Effluent and Waste Water Removal
and Transfer
Sump Drainage
Dewatering and
Flood Control
Specifications
Owner's
Manual
Click to enlarge |
|
The SC9/SCC9 Series pump is a rugged, cast
iron, submersible pump with a non-clog, two-vane semi-open impeller and
solids handling capability to 2", and comes complete with 20’power cord.
The SC9 Series has a 2"NPT vertical discharge. The SCC9 Series features
a 3"NPT vertical discharge. This is a Special
Order Item.
|
|
Features: |
|
 Impeller - Non-clog two
vane semi-open style
Dual Shaft Seals -
Primary mechanical seal with a secondary self-lubricating lip seal.
Seal Plate Barrier
Ring- The seal plate barrier ring protects the seals from debris.
Solid Handling - 2"
spherical solids handling capabilities.
Bearings and Mechanical Seal –Permanently lubricated for long life.
Overload Protection –Built-in thermal overload with
automatic reset.
|
|
SC9 and SCC9 Model |
|
H2O # |
Manf. # |
Description |
|
0880092 |
SC9200220M-01 |
SC9 series submersible pump,
cast iron, 2 HP
230v single phase, 2" discharge with 20 ft power cord |
|
0880096 |
SCC9200220M-01 |
SCC9 series submersible pump,
cast iron, 2 HP
230v single phase, 3" discharge with 20 ft power cord |
|
No longer Available |
|

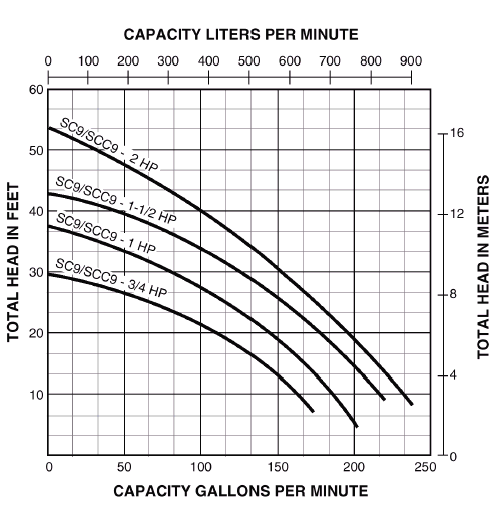

PERFORMANCE SC9, SCC9
SERIES |
|
Model |
GPM AT
TOTAL FEET |
No flow
at
height shown
below |
|
10 |
20 |
30 |
40 |
50 |
60 |
70 |
|
CAPACITY
GALLONS / MINUTE |
|
SC9200220M |
230 |
190 |
150 |
100 |
30 |
– |
– |
54 |
|
SCC9200220M |
230 |
190 |
150 |
100 |
30 |
– |
– |
54 |
|
