Clean & Clear Cartridge Filter
- Pentair |
|
NSF Listed
|
|

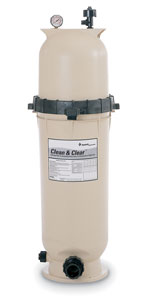

The Clean and Clear cellular media filter is a high quality filtration
unit utilizing a fiberglass reinforced polypropylene, chemically
resistant tank. All models are equipped with easy spin-on union
connections and lock ring with spring-loaded safety latches.
|
|
Clean & Clear Cartridge Filters |
|
H2O # |
Manf. # |
Description |
|
1430123 |
160314 |
50
sq ft, 1-1/2" Slip or 2" SPG x Union, Model CC 50 |
|
1430127 |
160315 |
75
sq ft, 1-1/2" Slip or 2" SPG x Union, Model CC 75 |
|
1430131 |
160316 |
100
sq ft, 1-1/2" Slip or 2" SPG x Union, Model CC 100 |
|
1430135 |
160317 |
150
sq ft, 1-1/2" Slip or 2" SPG x Union, Model CC 150 |
|
1430139 |
160318 |
200
sq ft, 1-1/2" Slip or 2" SPG x Union, Model CC 200 |
Data Sheets
Owner's
Manual
View Parts Breakdown
|
|
Specifications: |
|
Model |
Sq. Ft. |
Width |
Height |
Clearance* |
GPM**
( Res ) |
GPM***
( Comm ) |
Turnover ( in
Gallons ) |
|
8 hr |
10 hr |
12
hr |
|
CC 50 |
50 |
15-1/2" |
18" |
30" |
50 |
19 |
24,000 |
30,000 |
36,000 |
|
CC 75 |
75 |
15-1/2" |
25-1/2" |
39" |
75 |
28 |
36,000 |
45,000 |
54,000 |
|
CC 100 |
100 |
15-1/2" |
33" |
61" |
100 |
38 |
48,000 |
60,000 |
72,000 |
|
CC 150 |
150 |
15-1/2" |
40-1/2" |
76" |
150 |
56 |
72,000 |
90,000 |
108,000 |
|
CC 200 |
200 |
15-1/2" |
40-1/2" |
73" |
150 |
75 |
72,000 |
90,000 |
108,000 |
*
Clearance needed to remove
Filter Module
**One GPM per sq. ft.
shown recommended flow rate .5 GPM per sq. ft.
***Commercial
rate is a maximum of .375 GPM per
sq. ft.
Note - Pentair Pool Products
does not recommend flow rates above 150 GPM |
|
|
Clean & Clear
Replacement Cartridges -
Unicel |
|
|
Cartridges ( One Required ) |
|
H2O # |
Manf. # |
Description |
|
1846902 |
C-9405 |
50 sq ft, Unicel, ( replaces O.E.M # R173213 ) |
|
1846907 |
C-9407 |
75 sq ft, Unicel, ( replaces O.E.M # R173214 ) |
|
1846912 |
C-9410 |
100 sq ft, Unicel, ( replaces O.E.M # R173215 ) |
|
1846917 |
C-9415 |
150 sq ft, Unicel, ( replaces O.E.M # R173216 ) |
|
1846922 |
C-9419 |
200
sq ft, Unicel, ( replaces O.E.M # R173217 ) |
|
|
