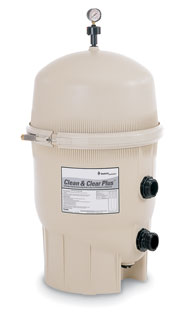

Clean & Clear Plus Cartridge Filter
- Pentair |
|
All Models except
CC240 are NSF Listed
|
|
Clean and Clear Plus filters are comprised of a corrosion resistant
injection
molded filter tank that produces the finish of plastic, but with the
strength
of fiberglass. The cartridge element assembly uses four easy to clean,
no woven, polyester cartridges. Each filter comes with a bulkhead union
kit for easy spin on plumbing connections.
|
|
Clean & Clear Plus Cartridge Filters |
|
H2O # |
Manf. # |
Description |
|
1430203 |
160310 |
240 sq ft, 1-1/2"
Slip or 2" SPG x Union, Model CC240 |
|
1430207 |
160340 |
320 sq ft, 1-1/2"
Slip or 2" SPG x Union, Model CC320, NSF listed |
|
1430211 |
160301 |
420 sq ft, 1-1/2"
Slip or 2" SPG x Union, Model CC420, NSF listed |
|
1430215 |
160332 |
520 sq ft, 1-1/2"
Slip or 2" SPG x Union, Model CC520, NSF listed |
Data Sheets
Owner's Manual
View Parts Breakdown
|
|
Specifications: |
|
Model |
Sq. Ft. |
Width |
Height |
Clearance* |
GPM**
( Res ) |
GPM***
( Comm ) |
Turnover ( in
Gallons ) |
|
8 hr |
10 hr |
12
hr |
|
CC240 |
240 |
21-1/2" |
37" |
56" |
90 |
90 |
43,000 |
54,000 |
64,800 |
|
CC320 |
320 |
21-1/2" |
43" |
62" |
120 |
120 |
57,600 |
72,000 |
86,400 |
|
CC420 |
420 |
21-1/2" |
49" |
68" |
150 |
150 |
72,000 |
90,000 |
108,000 |
|
CC520 |
520 |
21-1/2" |
56" |
74" |
150 |
150 |
72,000 |
90,000 |
108,000 |
*
Clearance needed to remove
Filter Module
Note - Pentair Pool Products
does not recommend flow rates above 150 GPM |
|
|
Clean & Clear
Plus Replacement Cartridges -
Unicel |
|
|
Replacement
Cartridges ( Four Required ) |
|
H2O # |
Manf. # |
Description |
|
1846613 |
C-7469 |
240 sq ft, Unicel, ( replaces
O.E.M # R173572 ), 4 required |
|
1846614 |
C-7470 |
320 sq ft, Unicel, ( replaces O.E.M #
R173573 ), 4 required |
|
1846615 |
C-7471 |
420 sq ft, Unicel, ( replaces O.E.M #
R173576 ), 4 required
for filters manufactured after 11/98 |
|
special order |
C-7498 |
520 sq ft, Unicel, ( replaces O.E.M #
R173577 ), 4 required
for filters manufactured before 11/98 |
|
1846616 |
C-7472 |
520
sq ft, Unicel, ( replaces O.E.M # R173578 ), 4 required
for filters manufactured after 11/98 |
|
|
