 Bypass Valve - Spring Loaded




4831313




A spring by-pass valve is used to regulate water bypass around filter and eliminate high filter pressure on systems with 2 speed pumps. Valves open at 5 lbs and is fully open at 17 lbs
.


H2O # Manf. # Description
4831313 CO-0103

DelCheck valve can be used as a bypass or as a regular check valve.
1-1/2" Slip or 2" Spigot,
5 lb spring, PVC
This bypass valve is not the one used in Del's ozone injector manifolds.
According to manufacturer, they do not sell the bypass they use.






 Check Valve - Air







Use for air blower installations, spring loaded, 1/4 lb. spring for a minimum restriction of air flow
which results in less burden on the blower motor.


H2O # Manf. # Description
4831144 1050-20

Spring air check valve, 1-1/2" Slip or 2" Spigot,
1/4 lb spring, white body, PVC




 Check Valve - Ozone Supply









H2O # Manf. # Description
4831309 7-11140-01

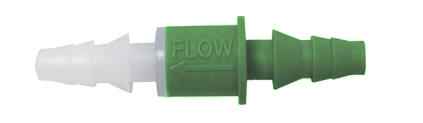

Del 1/4" barbed ozone check valve, one piece, spring loaded




 Check Valve - Chemical Feeders




4831325
4831333



4831317





H2O # Manf. # Description
4831325 R172323

Rainbow spring check valve, 1/4" tube compression,
corrosion resistant for chemical feed

4831333 R172324

Rainbow spring check valve, 1/2" tube compression,
corrosion resistant for chemical feed

4831317 R172288

Rainbow  1-1/2" Slip or 2" Spigot, 2 lb spring,
white body, used with some Rainbow chemical feeders, corrosion resistant

   *Note* For Blue & White and Stenner Feed Pump Check Valves please visit catalog page P-16 and P-17
