One of the many benefits of Stenner’s modular design is easy configuration to meet specific output requirements for a wide variety of applications. Interchangeable components provide users with the flexibility that’s required to handle jobs from small residential installations to large commercial projects. This modular design allows easy field upgrades by adding a second head or larger feed tube to increase outputs.

Classic 45 Series, fixed, low pressure feed, maximum of 50 gallons per day,
#5 feed tube and 3/8" tube install accessory kit, 115 volts, Pump Model 45MP5

Classic 45 Series, fixed, low pressure feed, maximum of 50 gallons per day,
#5 feed tube and 1/4" tube install accessory kit, 115 volts, Pump Model 45MP5

Stenner’s unique control mechanism allows the pump’s output to be adjusted from 5% to 100% with a simple turn of the dial. Other models of feeders, high pressure feeders, and nonadjustable feeders are also available on a special order basis. Tube sizes may be changed to alter pump output.


Features:

Completely self-priming, can operate dry
Will not clog from dirt and minor debris
Will not lose prime from air bubbles or hydrogen peroxide gassing
Check valves not required under 25 psi
Accurate within 2% of listed outputs
Five interchangeable tube sizes for control of feeder output
Capable of pumping up to 50% slurry mixtures
Vertical or horizontal mount

Classic 45 Series, adjustable, low pressure feed, 2.5 to 50 gallons per day,
#5 feed tube and 3/8" install tube accessory kit, 115 volts, Pump Model 45M5

Classic 85 Series, adjustable, low pressure feed, 4.3 to 85 gallons per day,
#5 feed tube and 3/8" install tube accessory kit, 115 volts, Pump Model 85M5

UCCP203

#3 tube assembly with ends, package of 2, nuts not included, 3/8" tube size

UCCP205

#5 tube assembly with ends, package of 2, nuts not included, 3/8" tube size

UCCP207

#7 tube assembly with ends, package of 2, nuts not included, 3/8" tube size

UCADPTR

3/8" lead tube adapter with nut, package of 2

UC3ASYD

Roller assembly-complete - old style - pre May 2011

MANUTOO

3/8" Nut for lead tube adapter

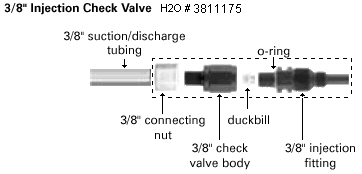

MCINJ38

3/8" Injection Check Valve

MCMAC38

Ceramic Weight with 3/8" Clip

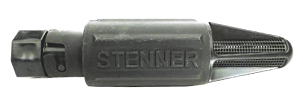

ST138

3/8" Weighted Suction Line Strainer

ST114

1/4" Weighted Suction Line Strainer

FC5040D

Adjustable Feed Rate Control with Shaft for 45 and 85 Classic Series

QP255-1

45M Series Pump Head Complete - Connection Type 1/4" Ferrules, Tube #5

UCAK100

1/4" Ferrule Nut

MCAK200

1/4" Ferrule

UCFC5AY

Index Pin Assembly with Lifter

3811182 - 3/8" Weighted Suction Line Strainer
3811183 - 1/4" Weighted Suction Line Strainer


3811185
Adjustable Feed Rate Control with Shaft for 45 and 85 Classic Series


3811190
45M Series Pump Head Complete - Connection Type 1/4" Ferrules
