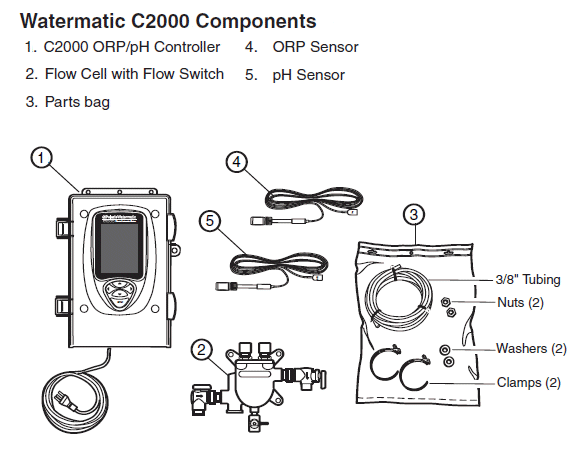

Flow Cell accepts new style and old style
sensors. New style screws into Flow Cell
directly, while the old style sensors use the
1/2" compression fitting. ( H2O# 9714055 )
|
Replacement Parts |
|
H2O # |
Manf. # |
Description |
|
3819301 |
3-270 |
ORP Old Style
Sensor, Install Method: Compression |
|
3819306 |
3-280 |
pH
Old Style Sensor, Install Method:
Compression |
|
3819304 |
3-271 |
ORP New Style
Sensor, Install Method: Threaded, 1/2" |
|
3819310 |
3-281 |
pH
New Style Sensor, Install Method:
Threaded, 1/2" |
|
9714055 |
2-620 |
Sensor Compression Fitting, 1/2" Mip X 1/2" Compression,
Used with Old Style Sensors, threads into Flow Cell |
|
9714050 |
2-135 |
Tubing Compression Fitting, 1/8" Male Npt X 1/2" Compression |
|
3819296 |
9-700 |
Flow cell with
Flow
Switch, Includes tubing, fittings and strainer assembly |
|
3819297 |
8-112 |
Screen, Strainer Assembly |
|
3819299 |
9-701 |
Flow
Switch replacement |
|
